100kWh LFP Battery Storage
Combines onboard energy storage and DC fast charging in a mobile robotic platform.
Mobile Charging Robots

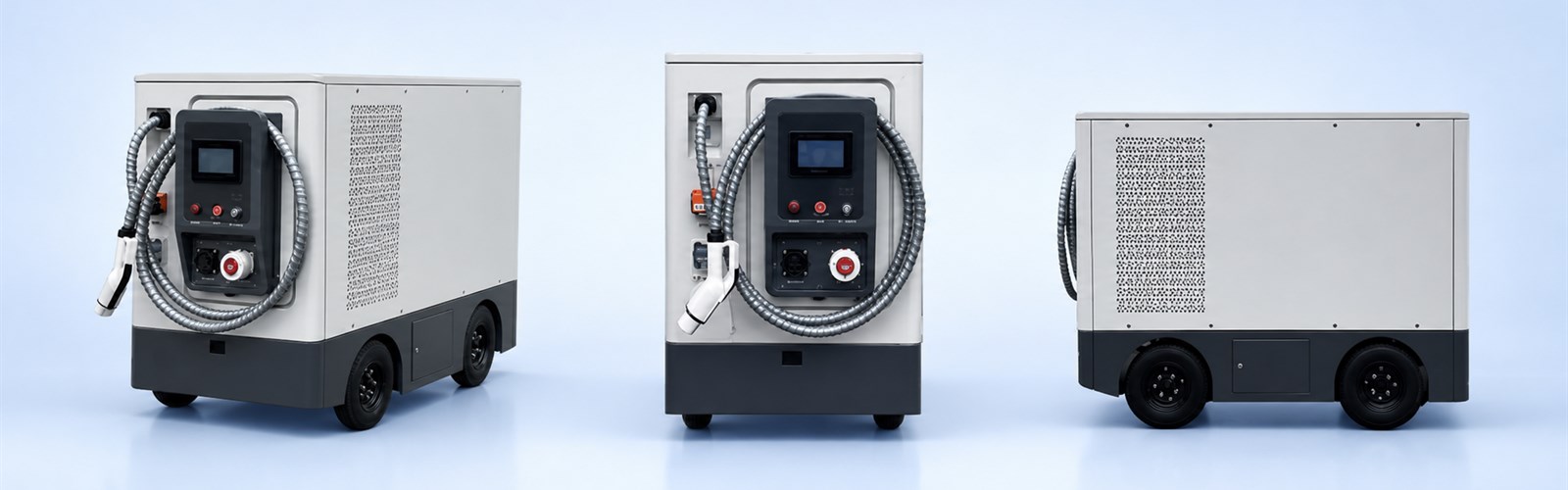

100 kWh / 90 kW Mobile Charging Robot
Remote-control mobile charging for parking facilities, vehicle compounds and flexible on-demand service.
100 kWhBattery Capacity
90 kWDC Output
Single connectorCharging Outputs
IP54Protection

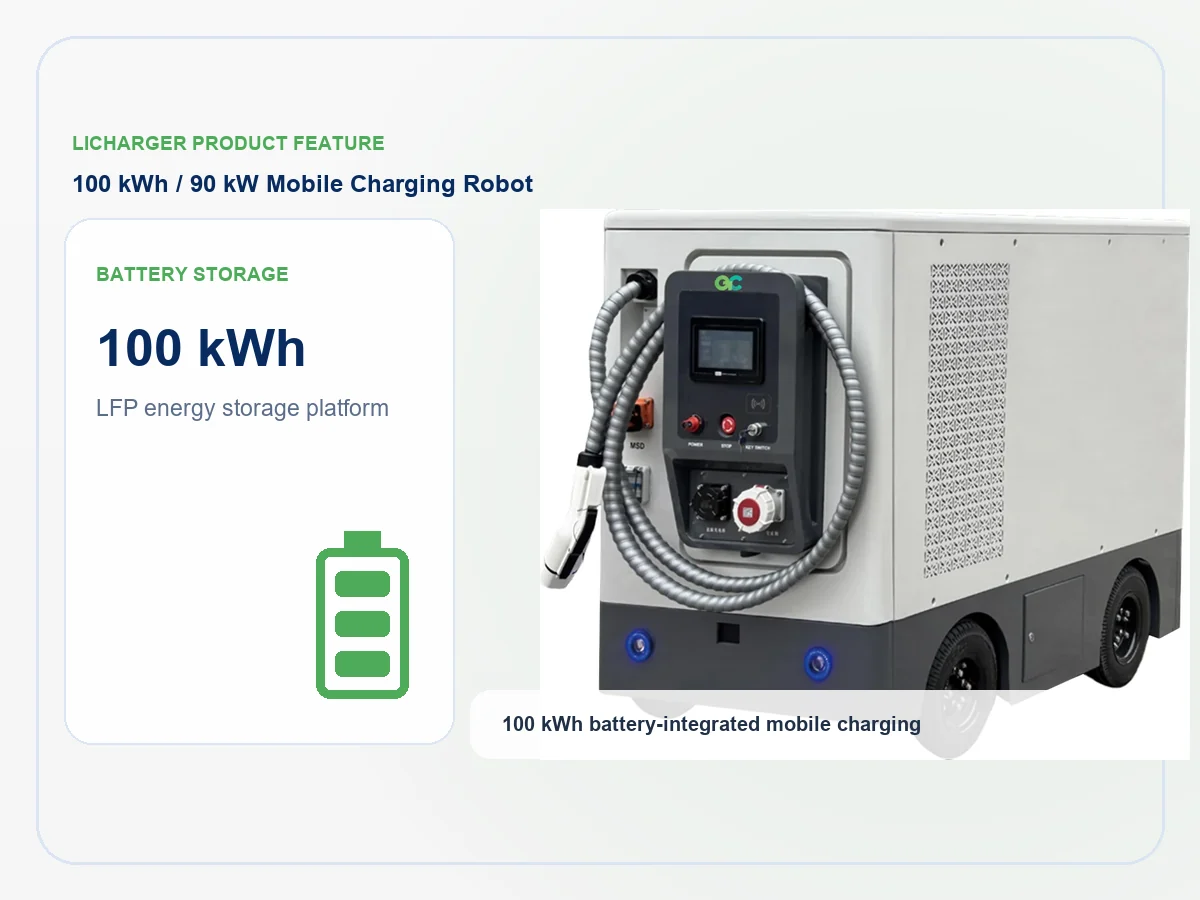

Battery-Powered DC Fast Charging
100 kWh of integrated energy storage with 90 kW DC output.
Model-Specific Compliance
CE, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1, CCS2, CHAdeMO, GB/T or NACS; final connector and cable configuration is agreed before production.
Overview
100 kWh / 90 kW Mobile Charging Robot
Remote-control mobile charging for parking facilities, vehicle compounds and flexible on-demand service. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LCR100-90100 kWh90 kW200–1000 V DCParking facilities, Vehicle compounds, On-demand charging
PRODUCT FEATURES
Key Features of the 100kWh / 90kW Mobile Charging Robot

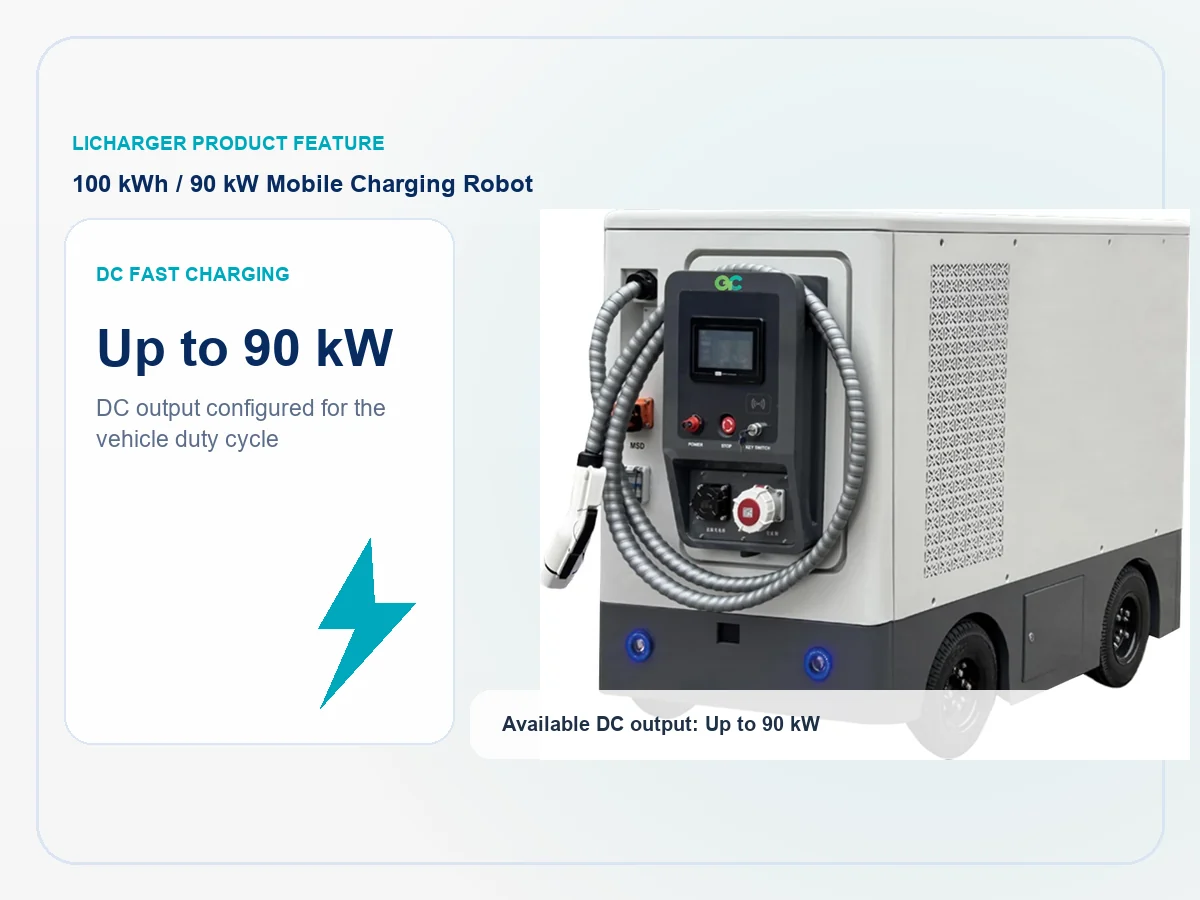

Up to 90kW Single-Gun Output
Delivers DC fast charging through one market-selected connector.

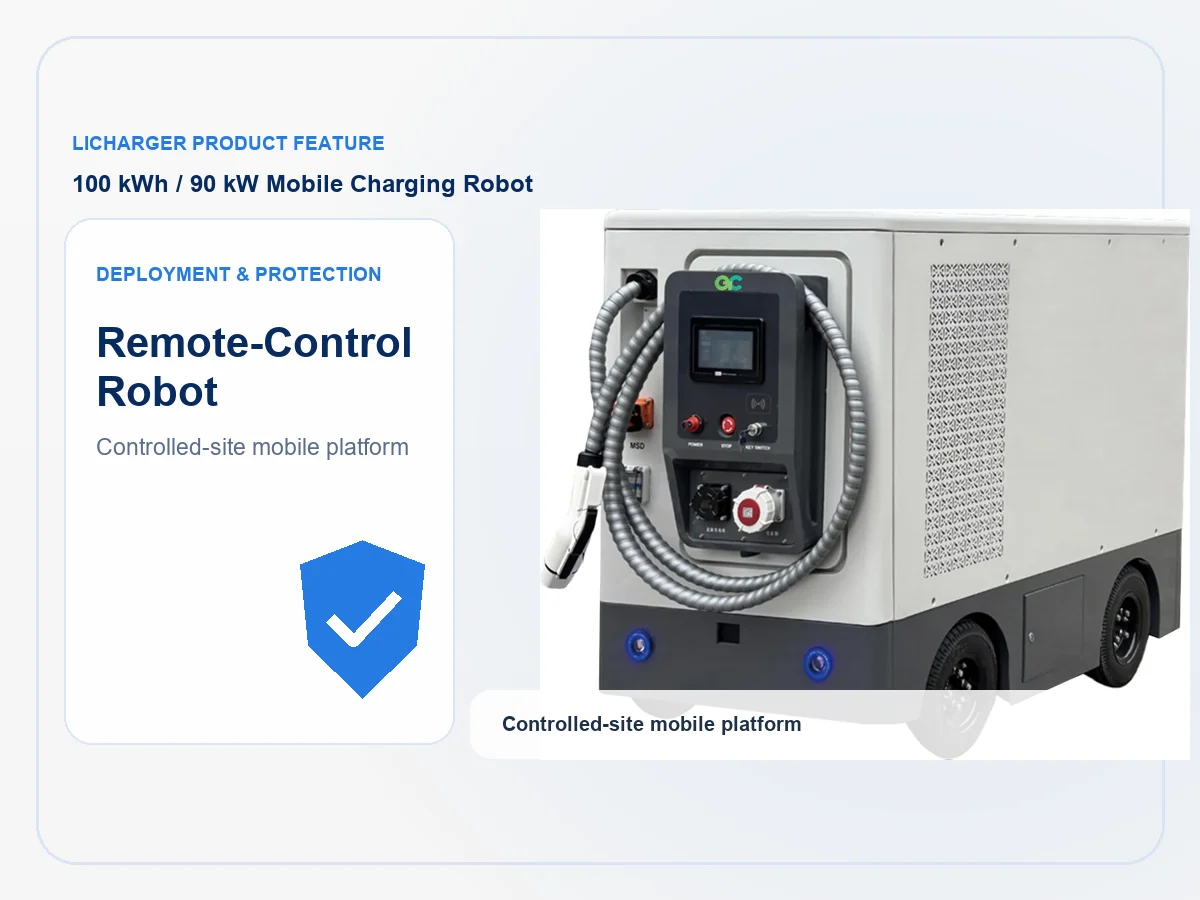

Remote-Control Mobile Platform
Supports controlled movement around parking facilities, vehicle compounds and service areas.

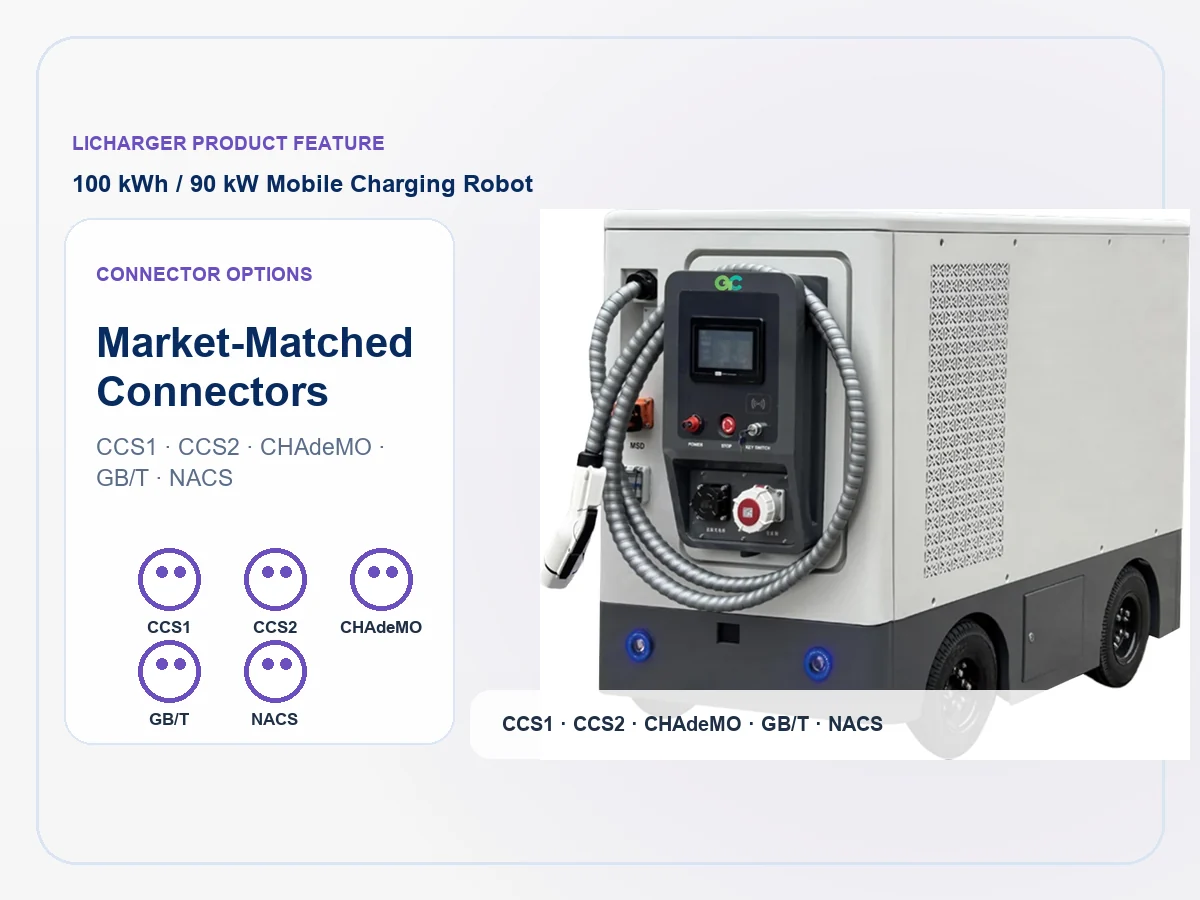

Flexible Connector Options
Available with CCS1, CCS2, NACS, GB/T or CHAdeMO based on market requirements.

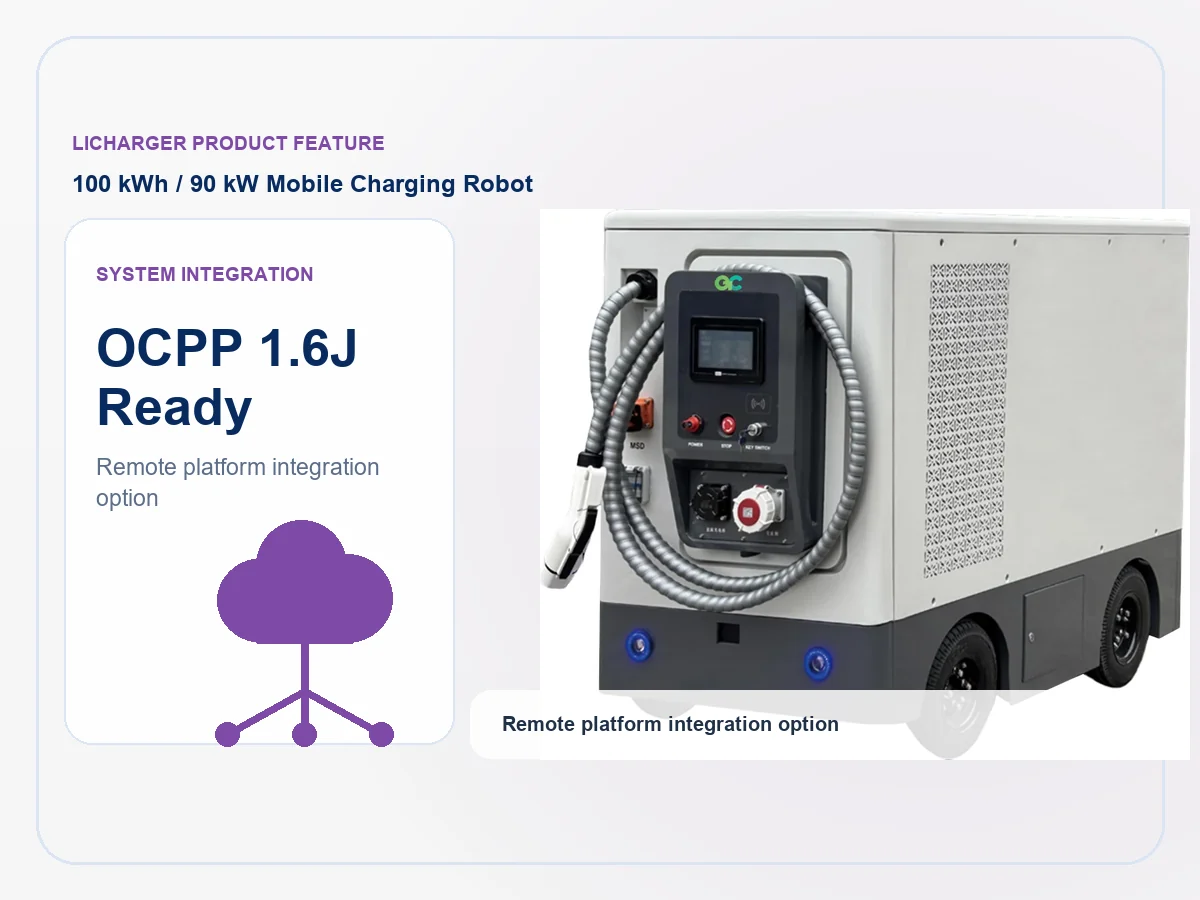

OCPP 1.6J Integration Option
Compatible backend integration, remote monitoring and charging records can be configured when required.

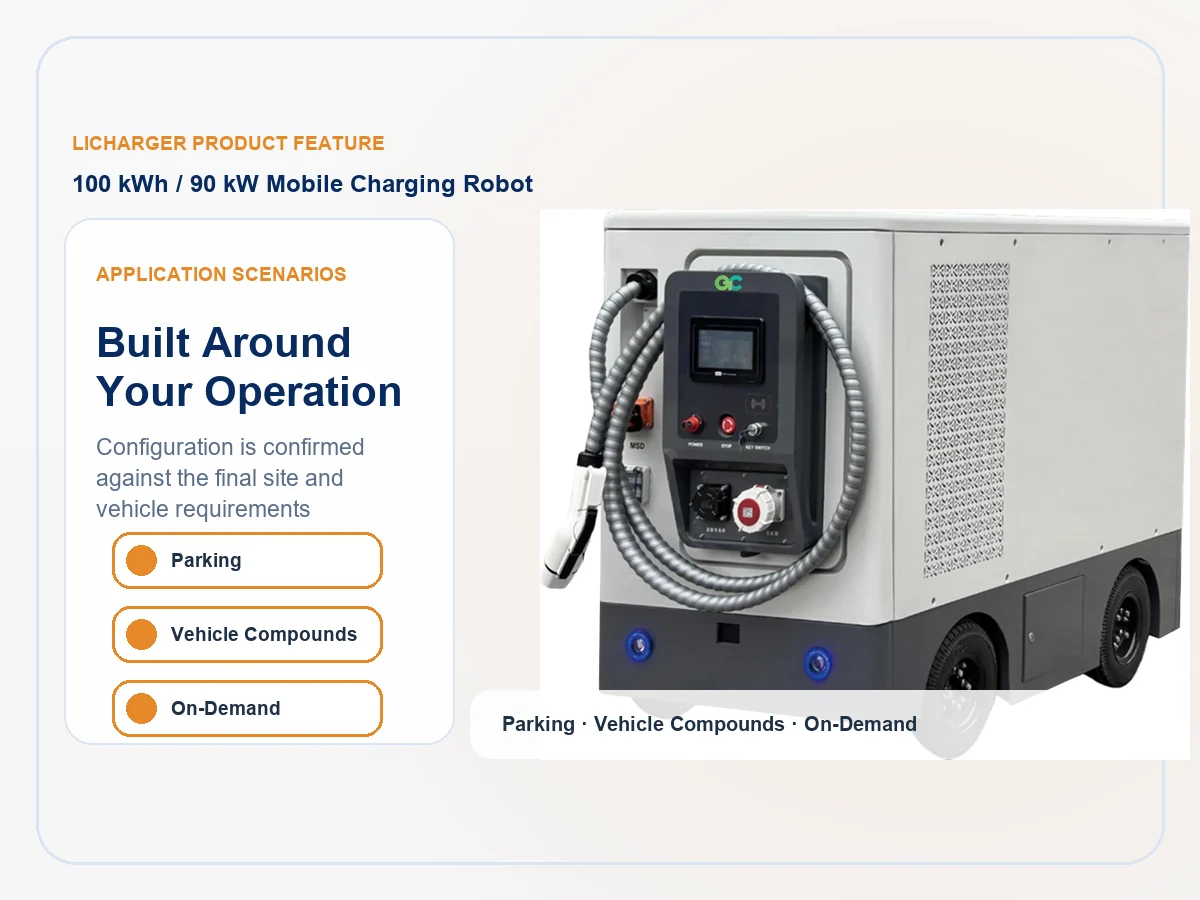

On-Demand Charging Applications
Built for parking facilities, vehicle compounds, door-to-door charging and controlled-site support.
Specifications
Technical Specifications
100 kWh lithium iron phosphate (LiFePO4)
90 kW
200–1000 V DC
Single connector; CCS1, CCS2, CHAdeMO, GB/T or NACS
At least 5,000 cycles at 80% DOD
Charge 0°C to 60°C; discharge -30°C to 60°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
IP54
2034.5 × 920 × 1490.5 mm
Approx. 1420 kg
CE, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference
New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
