200kWh LFP Battery Storage
Stores energy for high-power charging where available grid capacity is limited.
Fixed Charging Systems
200 kWh / 120 kW Fixed Battery-Integrated Charger

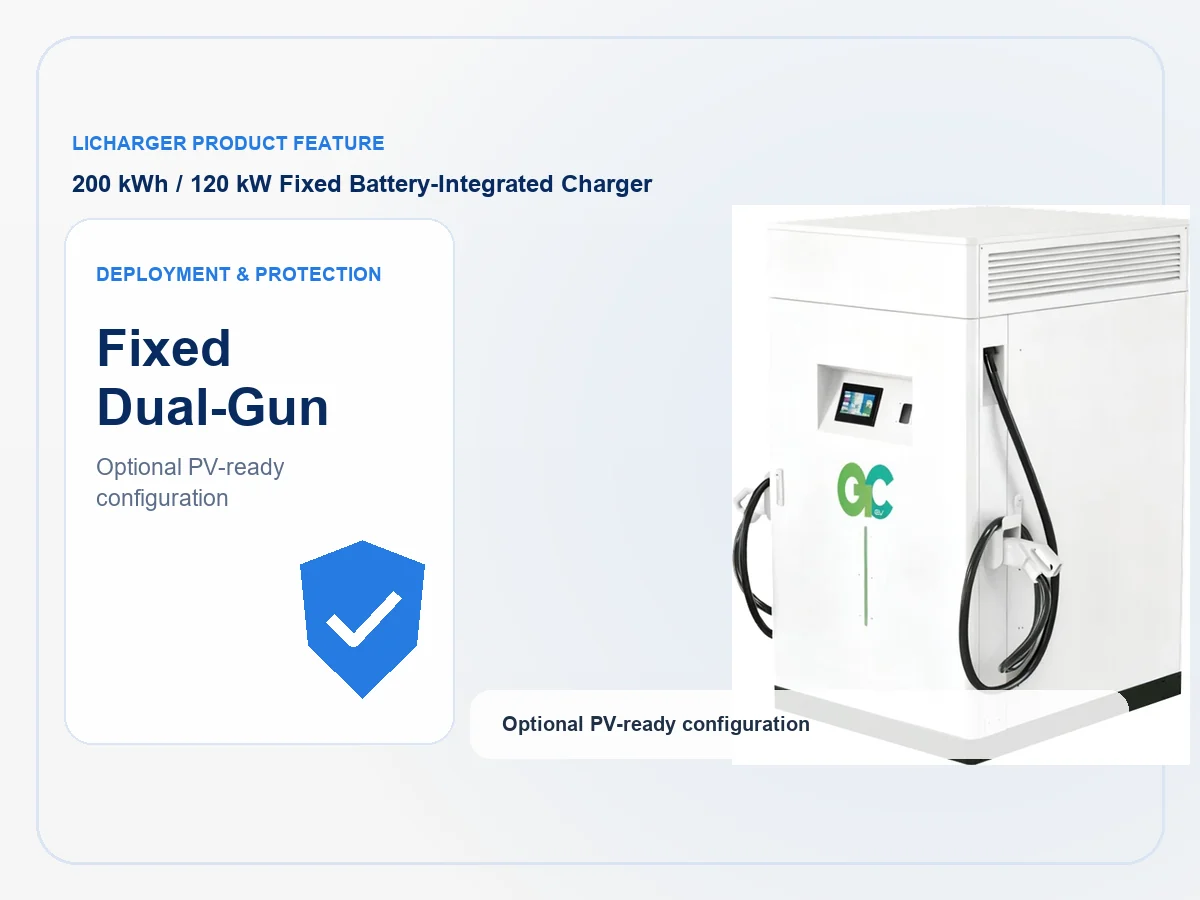

Battery-buffered fixed charging with two 60 kW DC outputs for grid-constrained sites, with an optional PV-ready project configuration.
200 kWhBattery Capacity
120 kW total; dual 60 kW × 2DC Output
Two connectorsCharging Outputs
IP54Protection
Battery-Powered DC Fast Charging

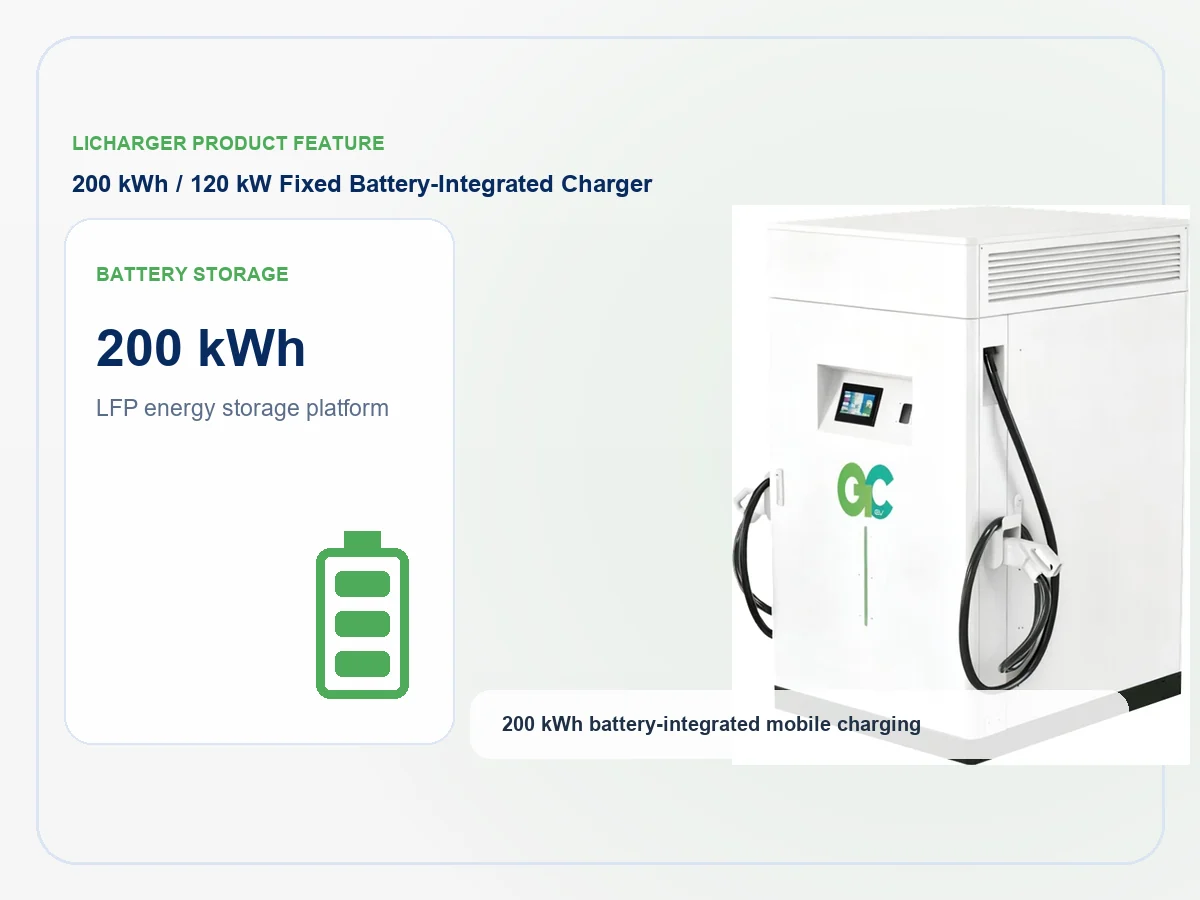

200 kWh of integrated energy storage with 120 kW total; dual 60 kW × 2 DC output.
Model-Specific Compliance
CE, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1, CCS2, CHAdeMO, GB/T or NACS; final connector and cable configuration is agreed before production.
Overview

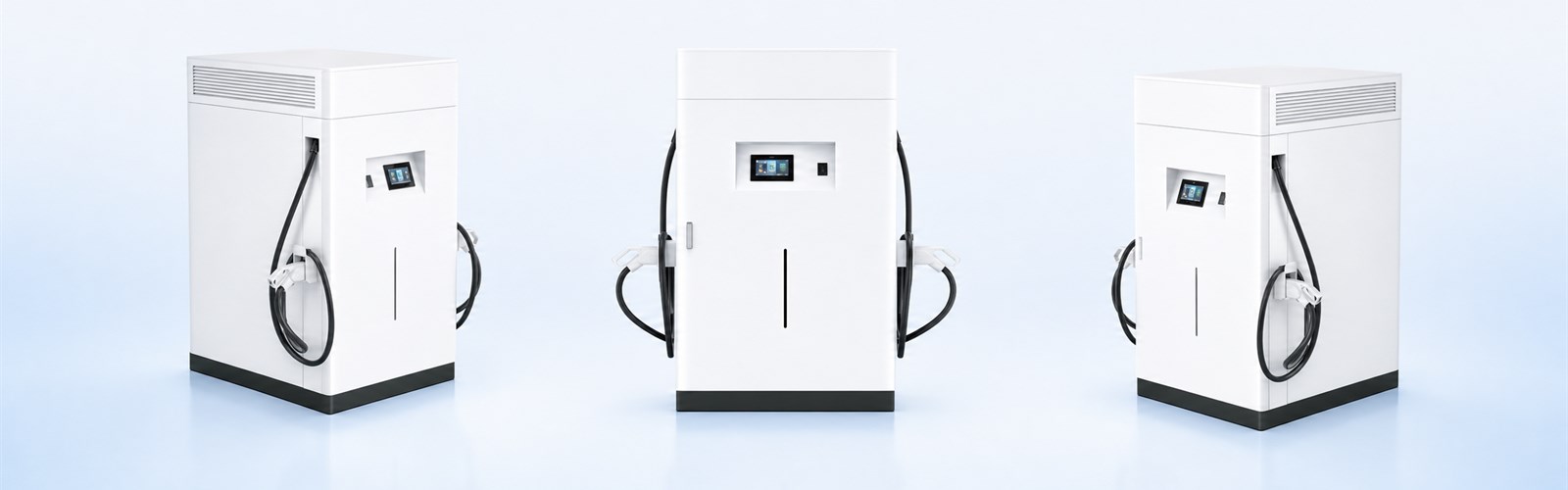

200 kWh / 120 kW Fixed Battery-Integrated Charger
Battery-buffered fixed charging with two 60 kW DC outputs for grid-constrained sites, with an optional PV-ready project configuration. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LCF200-120200 kWh120 kW total; dual 60 kW × 2200–1000 V DCGrid-constrained sites, Fleet depots, Commercial charging
PRODUCT FEATURES
Key Features of the 200kWh / 120kW Fixed Charging System
Dual 60kW DC Outputs
Provides 120kW total output for charging two compatible vehicles at the same time.
Fixed Battery-Integrated Design
Combines energy storage and DC charging in one floor-mounted system.

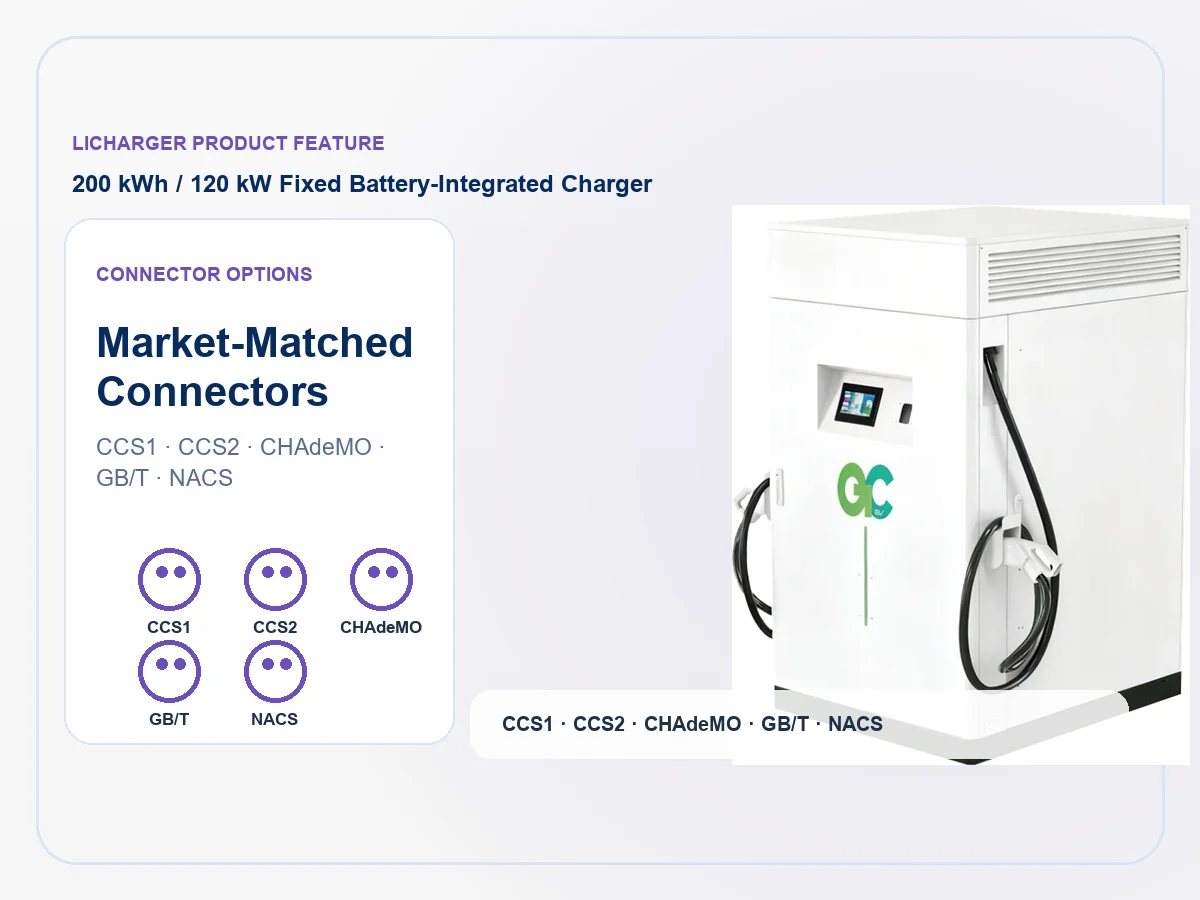

Flexible Connector Options
Available with CCS1, CCS2, NACS, GB/T or CHAdeMO based on market requirements.

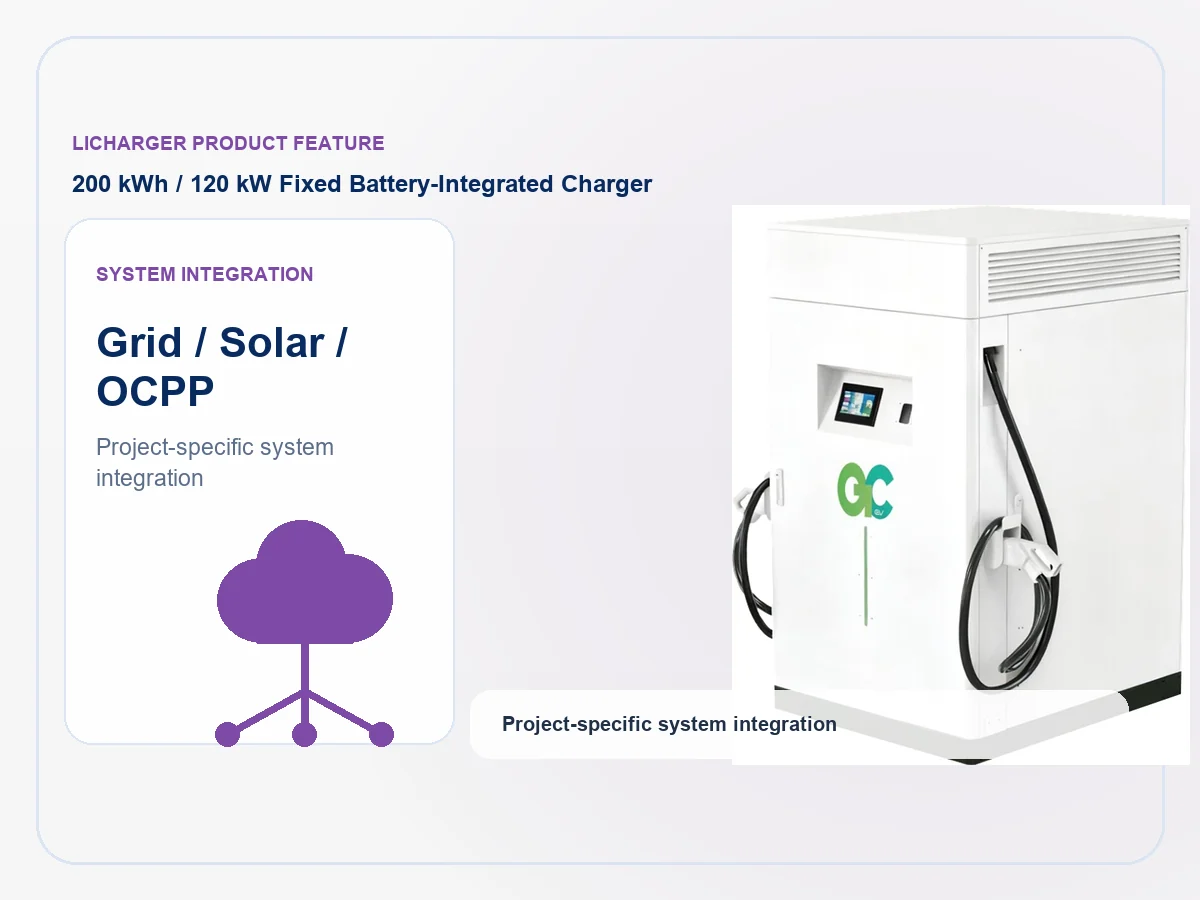

Grid, Solar and OCPP Options
Recharge input and compatible OCPP 1.6J backend integration can be configured for the project.

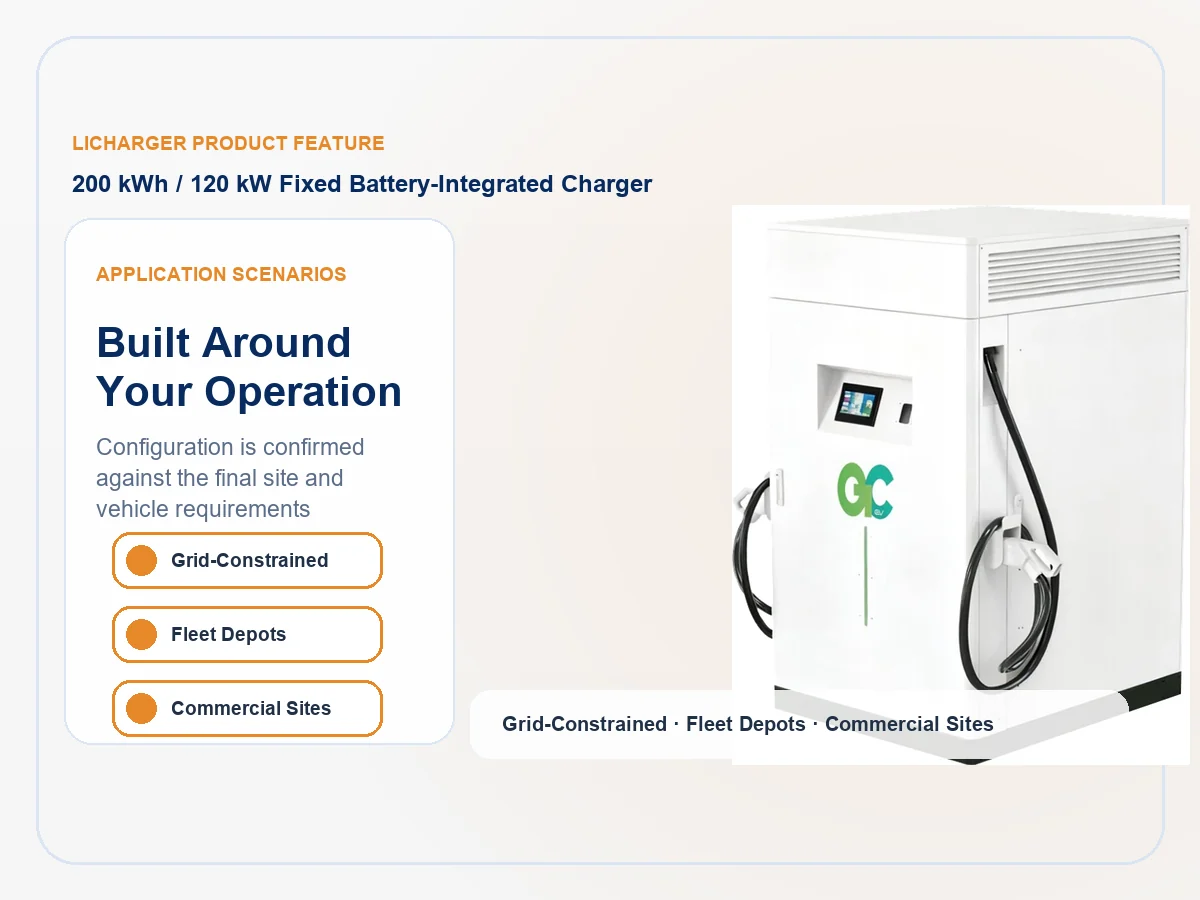

Grid-Constrained Site Applications
Designed for fleet depots, commercial charging and sites with limited available grid power.
Specifications
Technical Specifications
200 kWh lithium iron phosphate (LiFePO4)
120 kW total; dual 60 kW × 2
200–1000 V DC
Two connectors; CCS1, CCS2, CHAdeMO, GB/T or NACS
At least 5,000 cycles at 80% DOD
Charge 0°C to 60°C; discharge -30°C to 60°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
IP54
1100 × 1300 × 1950 mm
Approx. 2600 kg
CE, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference
New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
