209kWh Battery Storage
Carries high onboard energy for repeated charging tasks in controlled operating areas.
Mobile Charging Robots
209 kWh / 150 kW Mobile Charging Robot
A high-capacity smart mobile charger for controlled sites that need flexible charging without a fixed charger at every space.
209 kWhBattery Capacity
Up to 150 kWDC Output
Market-specific configurationCharging Outputs
IP54Protection

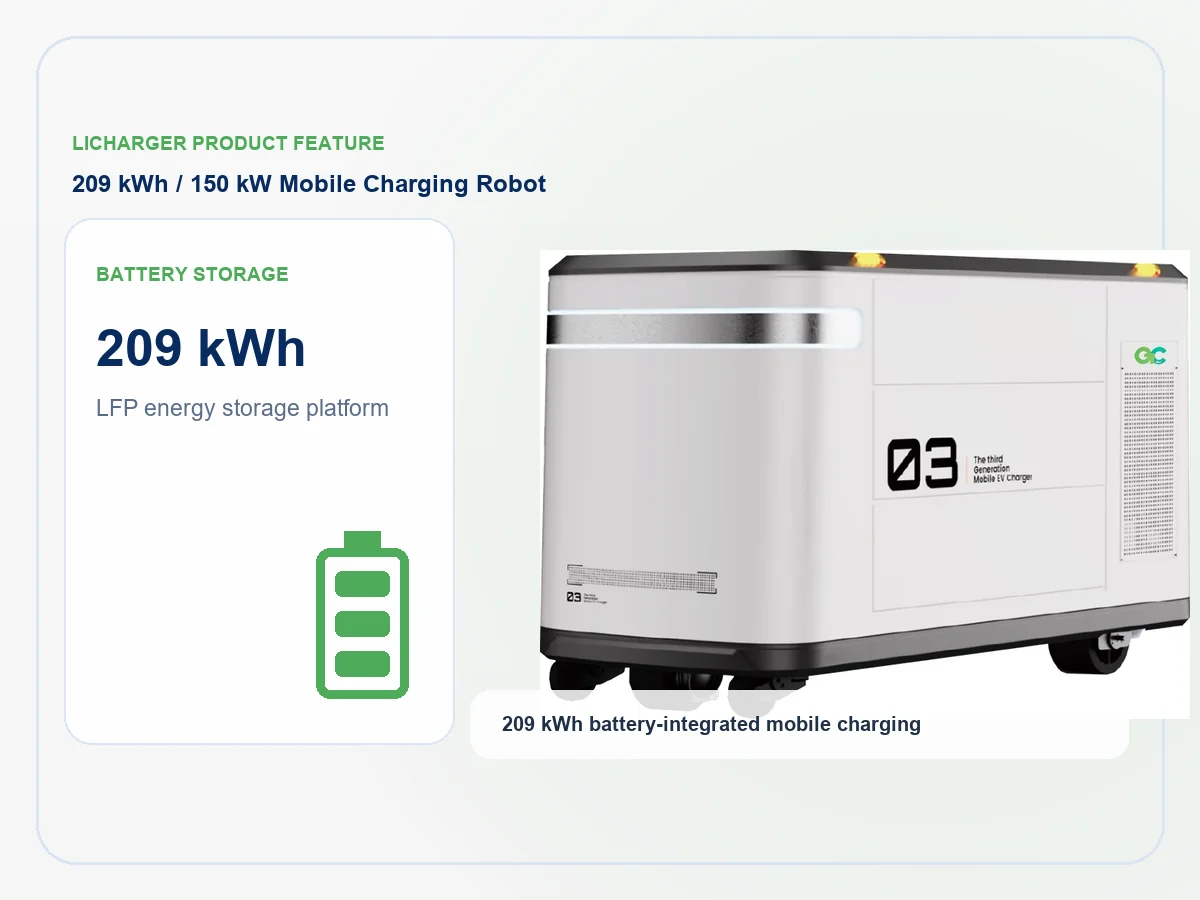

Battery-Powered DC Fast Charging
209 kWh of integrated energy storage with Up to 150 kW DC output.
Model-Specific Compliance
CE, UL 1973, UL 2202, UL 9540A, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1 or GB/T; NACS via adapter where applicable; final connector and cable configuration is agreed before production.

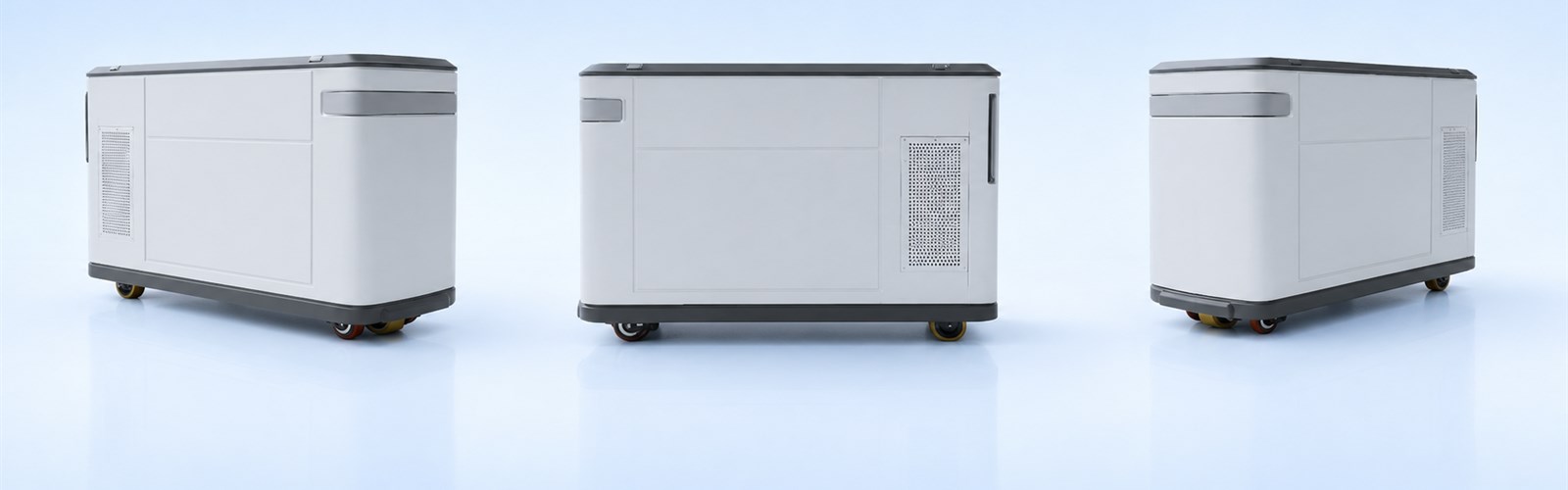

Overview
209 kWh / 150 kW Mobile Charging Robot
A high-capacity smart mobile charger for controlled sites that need flexible charging without a fixed charger at every space. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LCR209-150209 kWhUp to 150 kWMarket-specific configurationParking operations, Fleet compounds, Vehicle storage
PRODUCT FEATURES
Key Features of the 209kWh / 150kW Mobile Charging Robot
Up to 150kW DC Output
Output power is configured for the selected CCS1 or GB/T market version.

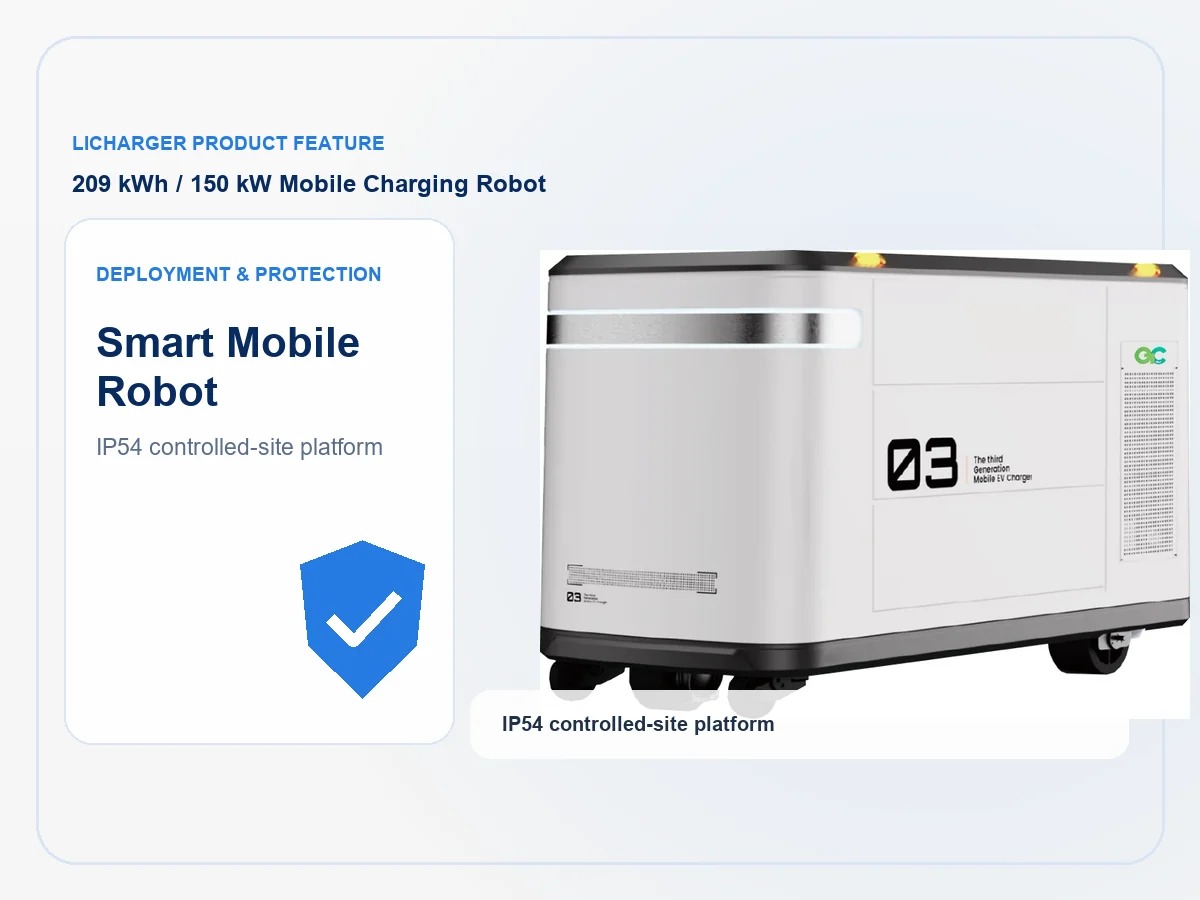

Smart Mobile Charging Platform
An IP54-rated platform supports remote movement and optional autonomous modules.

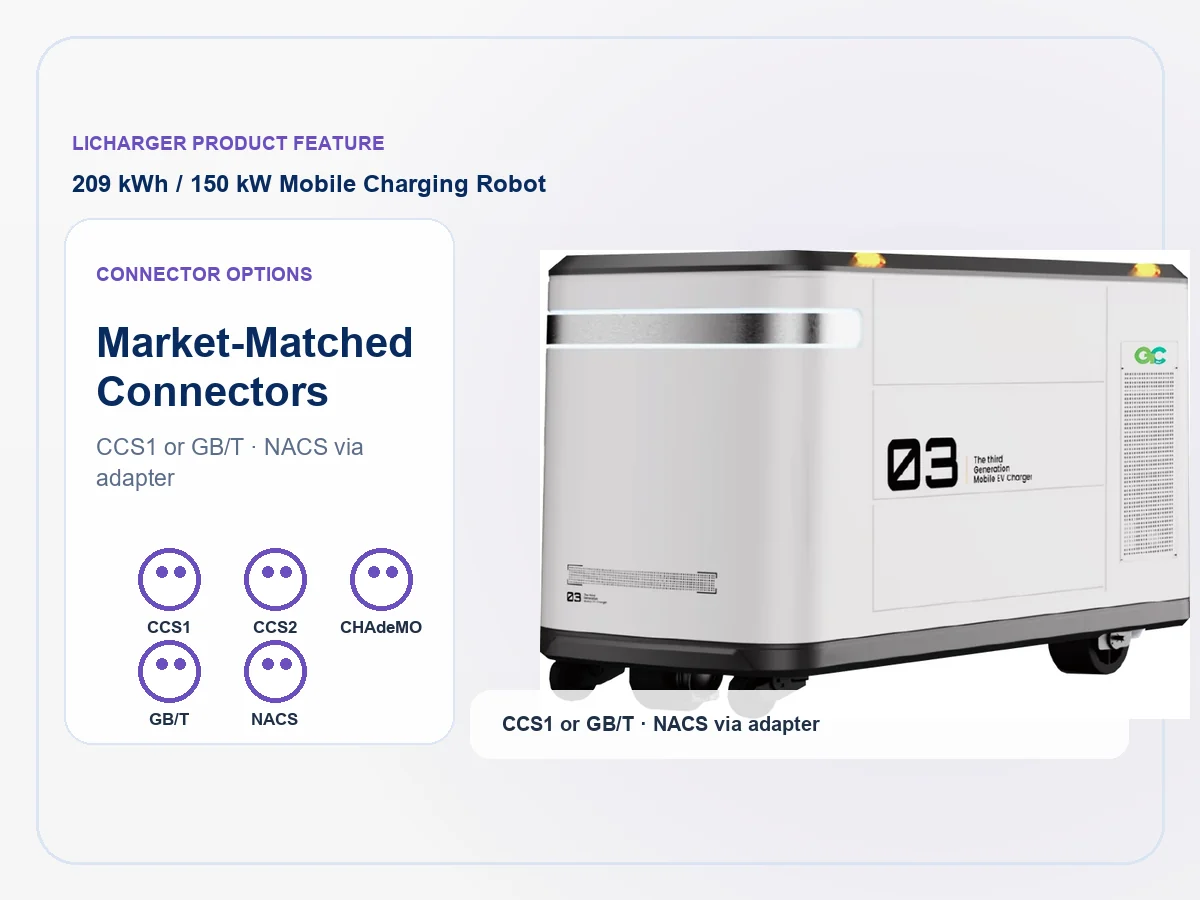

Market-Specific Connector Options
Available as CCS1 or GB/T; NACS can be supported through an adapter where applicable.

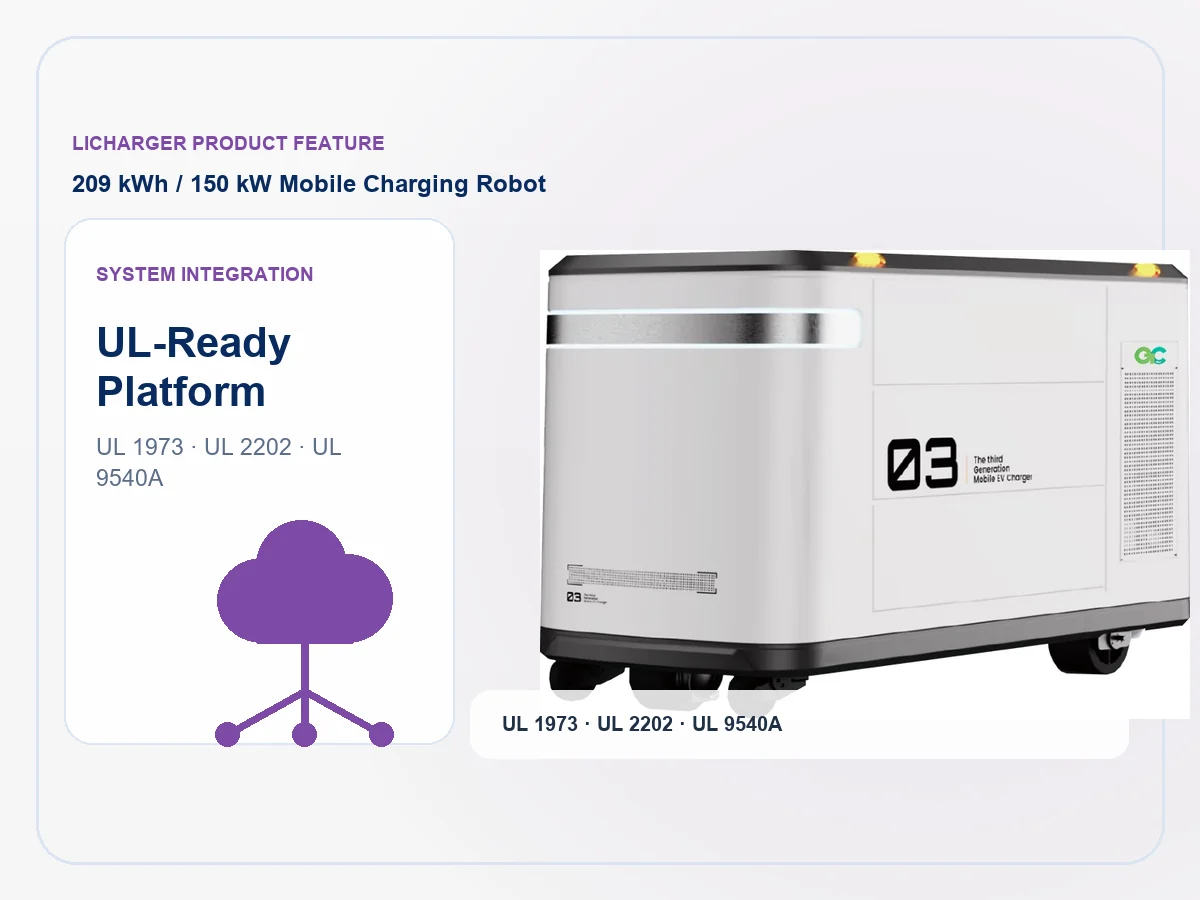

UL Documentation for Applicable Model
UL 1973, UL 2202 and UL 9540A documentation is available for the applicable 209kWh configuration.

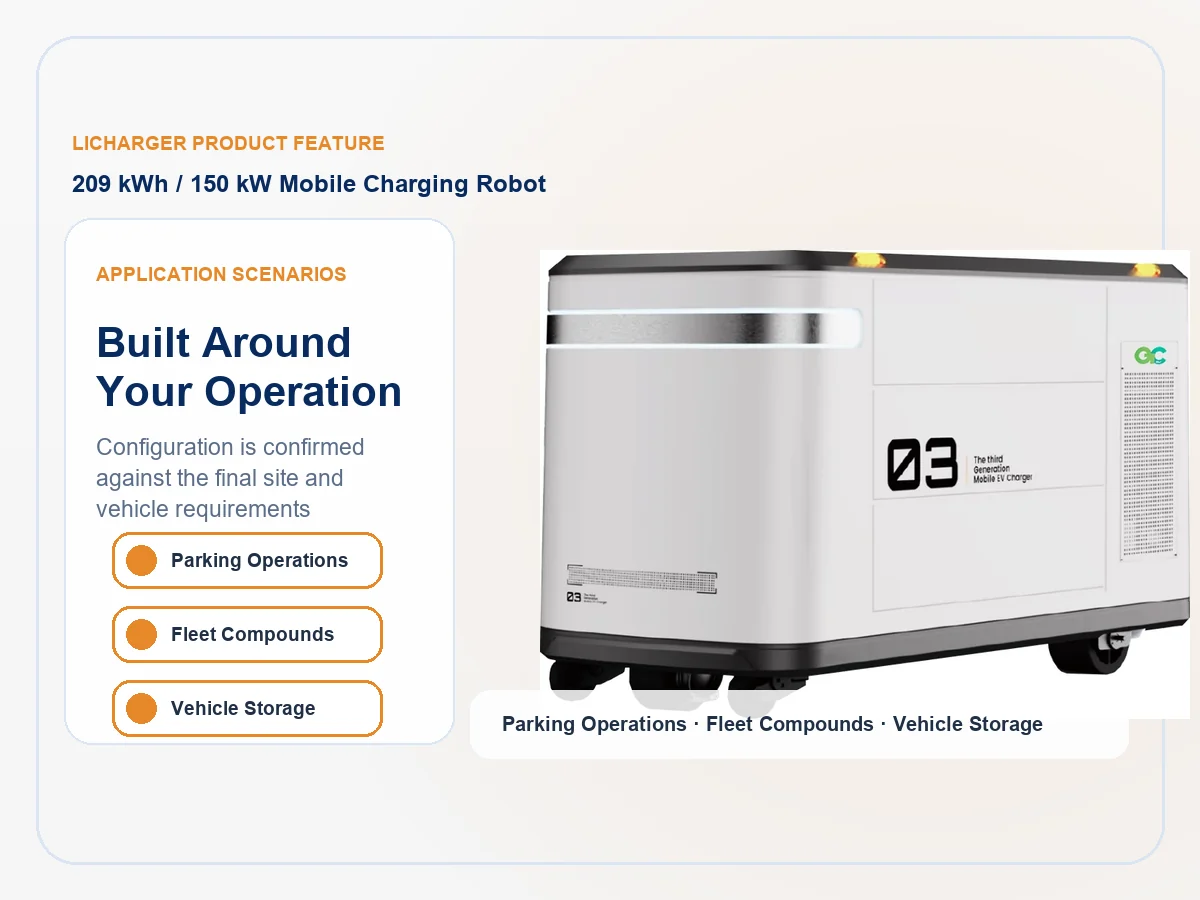

Parking and Vehicle-Storage Applications
Designed for airports, logistics parks, fleet compounds, public parking and on-demand charging.
Specifications
Technical Specifications
209 kWh lithium iron phosphate (LiFePO4)
Up to 150 kW
Market-specific configuration
Market-specific configuration; CCS1 or GB/T; NACS via adapter where applicable
At least 5,000 cycles at 80% DOD
-20°C to 45°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
IP54
Configuration-dependent
Approx. 2.1–2.3 t
CE, UL 1973, UL 2202, UL 9540A, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference
New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
