100kWh LFP Battery Storage
Provides more stored energy for repeated roadside, fleet and temporary charging tasks.
Mobile DC Fast Chargers
100 kWh / 90 kW Mobile DC Fast Charger
A higher-capacity movable charger for service operators, fleets and grid-constrained locations.
100 kWhBattery Capacity
90 kWDC Output
Single connectorCharging Outputs
IP54Protection
Battery-Powered DC Fast Charging
100 kWh of integrated energy storage with 90 kW DC output.
Model-Specific Compliance
CE, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1, CCS2, CHAdeMO, GB/T or NACS; final connector and cable configuration is agreed before production.
Overview

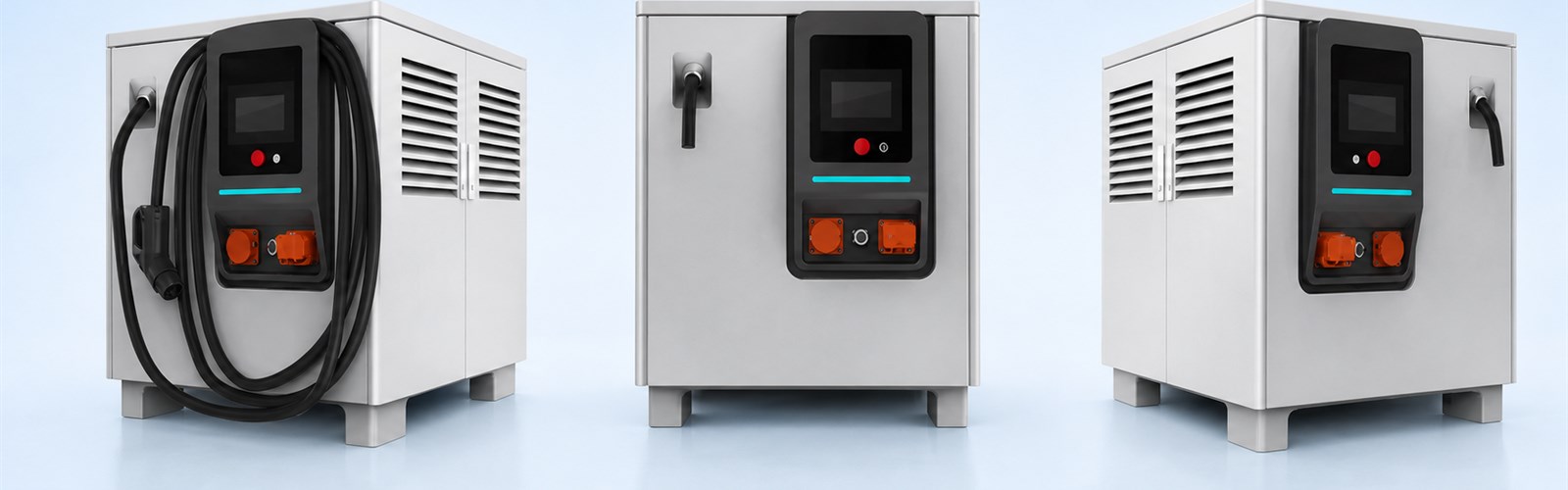

100 kWh / 90 kW Mobile DC Fast Charger
A higher-capacity movable charger for service operators, fleets and grid-constrained locations. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
Comparing these two mobile charger sizes? Use the 75 kWh versus 100 kWh project checklist to prepare the vehicle, energy, operating-window, recharge and installation information needed for review.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LC100-90100 kWh90 kW200–1000 V DCRoadside assistance, Fleet depots, Grid-constrained sites
PRODUCT FEATURES
Key Features of the 100kWh / 90kW Mobile DC Fast Charger

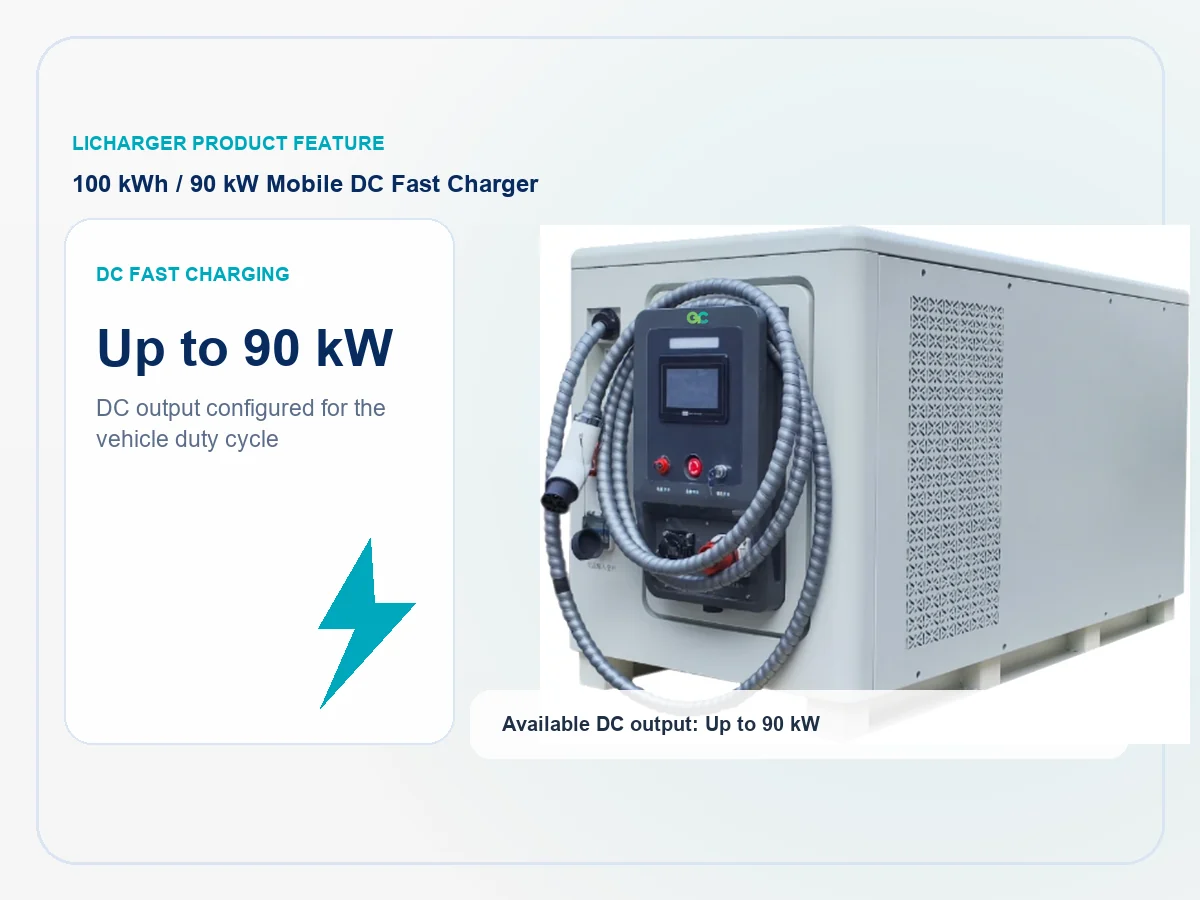

Up to 90kW DC Output
Single-connector DC fast charging from 200–1000V for compatible electric vehicles.

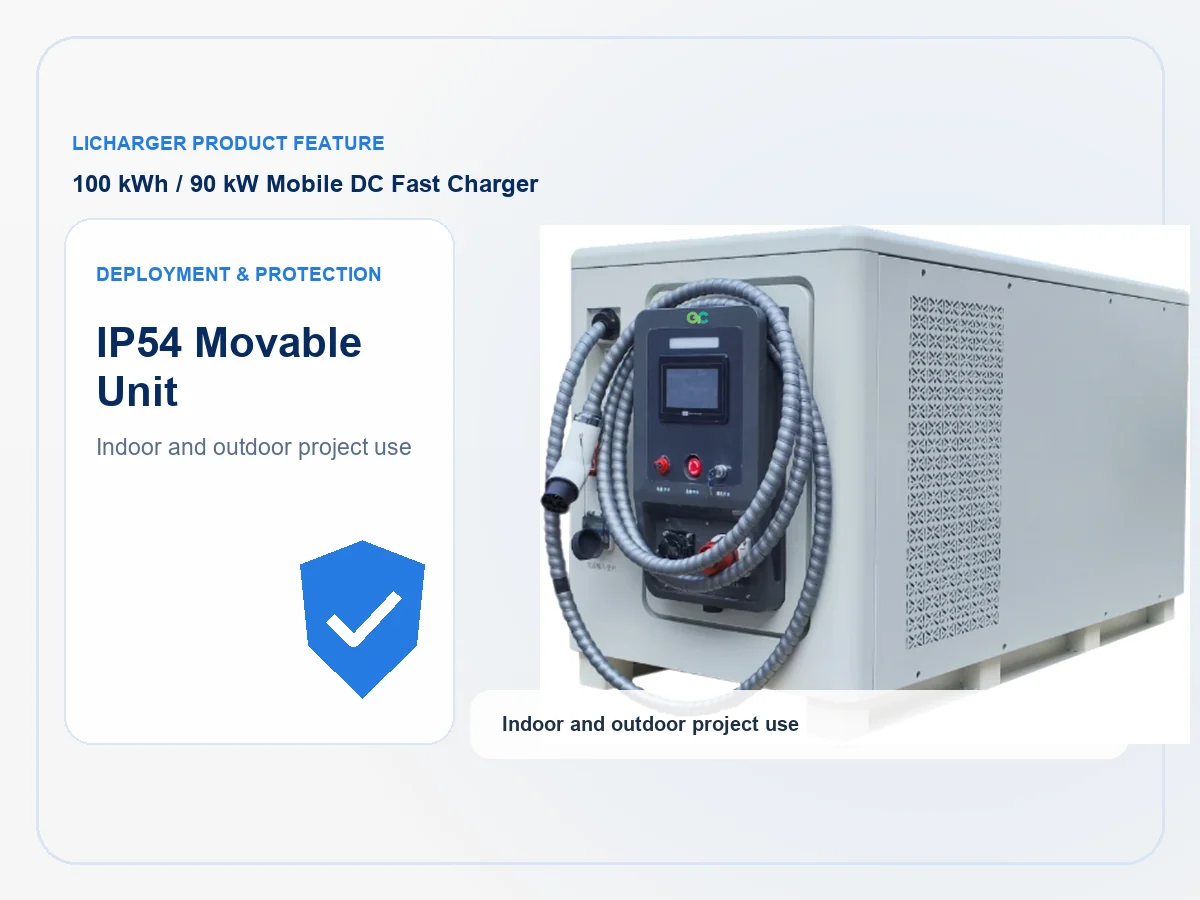

IP54 Protection Rating
Designed for movable charging operation in indoor and outdoor project environments.

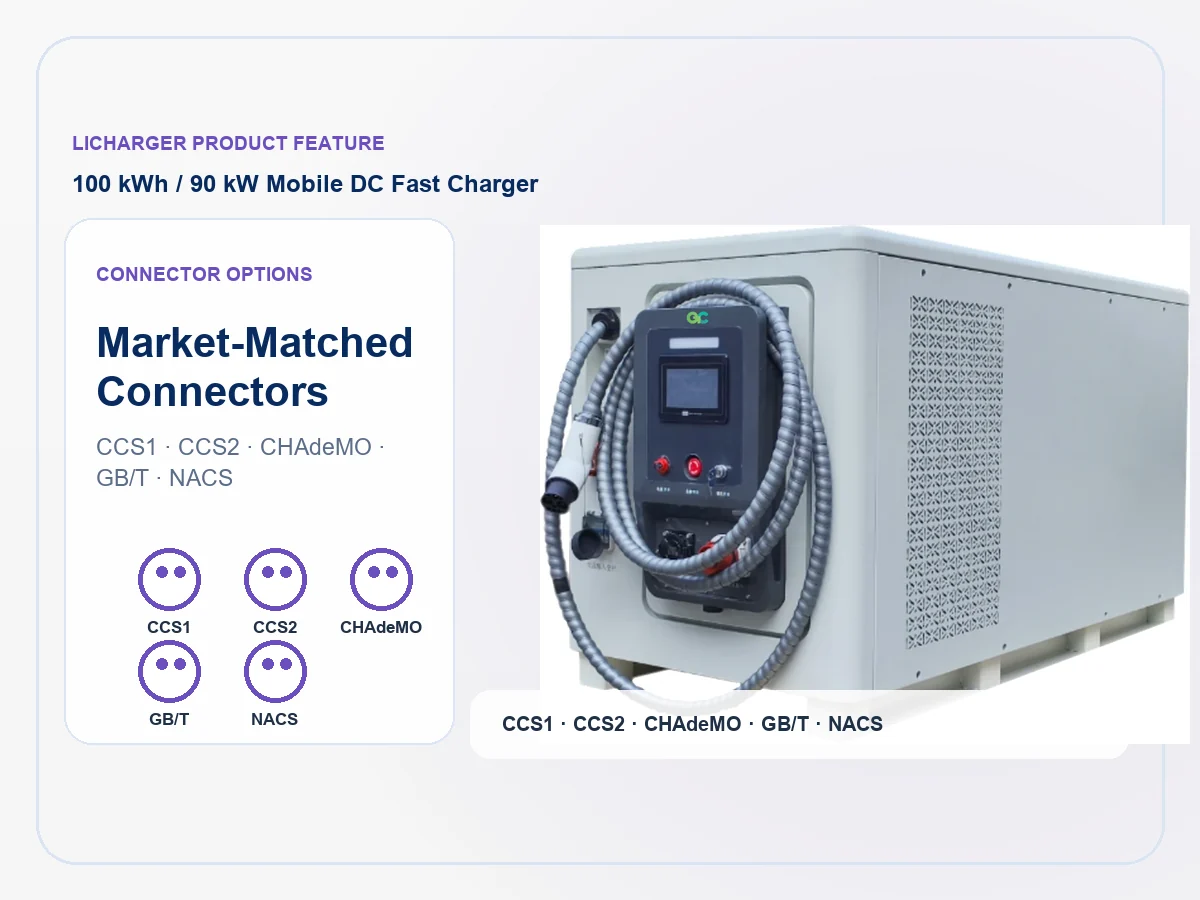

Flexible Connector Options
Available with CCS1, CCS2, NACS, GB/T or CHAdeMO based on market requirements.

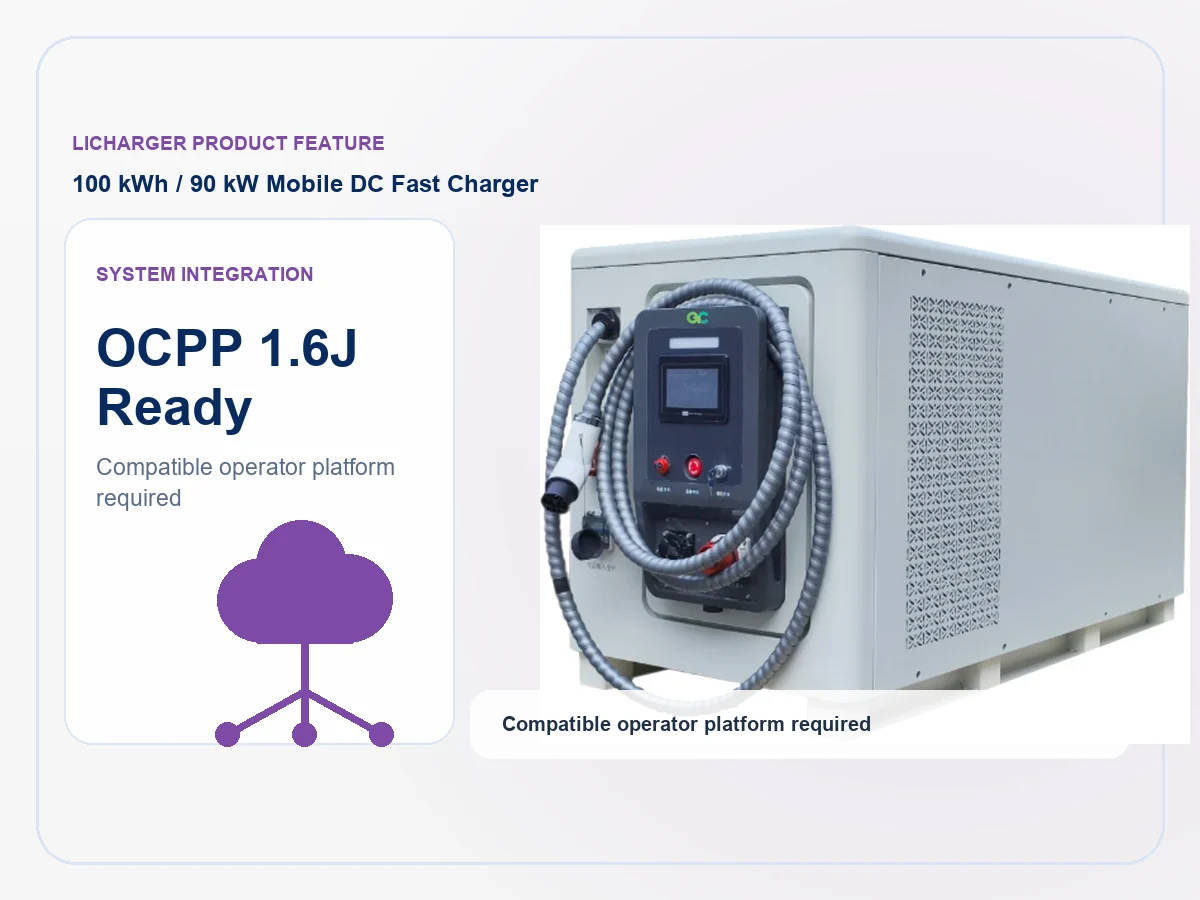

OCPP 1.6J Integration Option
Compatible backend integration, remote monitoring and charging records can be configured when required.

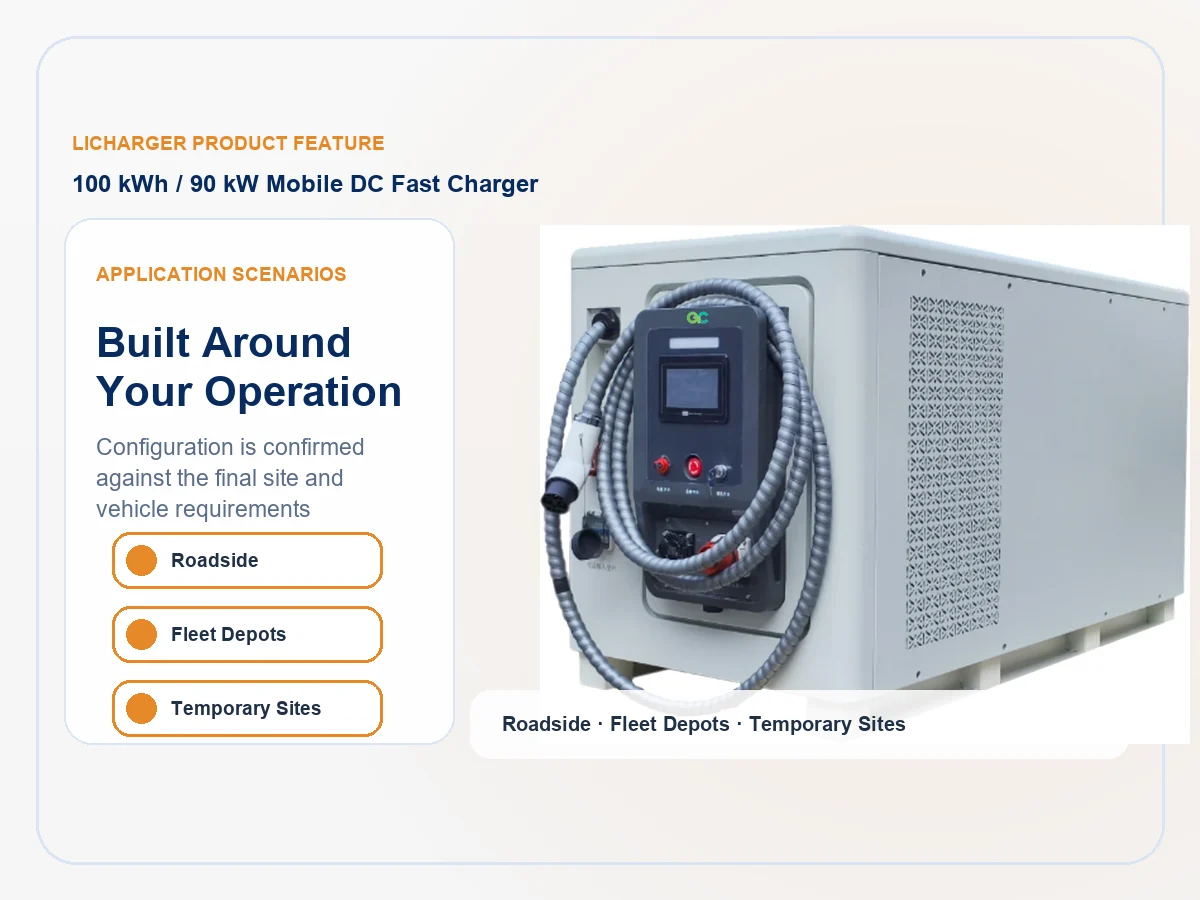

Mobile Service Applications
Suitable for roadside assistance, fleet depots, vehicle delivery and grid-constrained sites.
Specifications
Technical Specifications

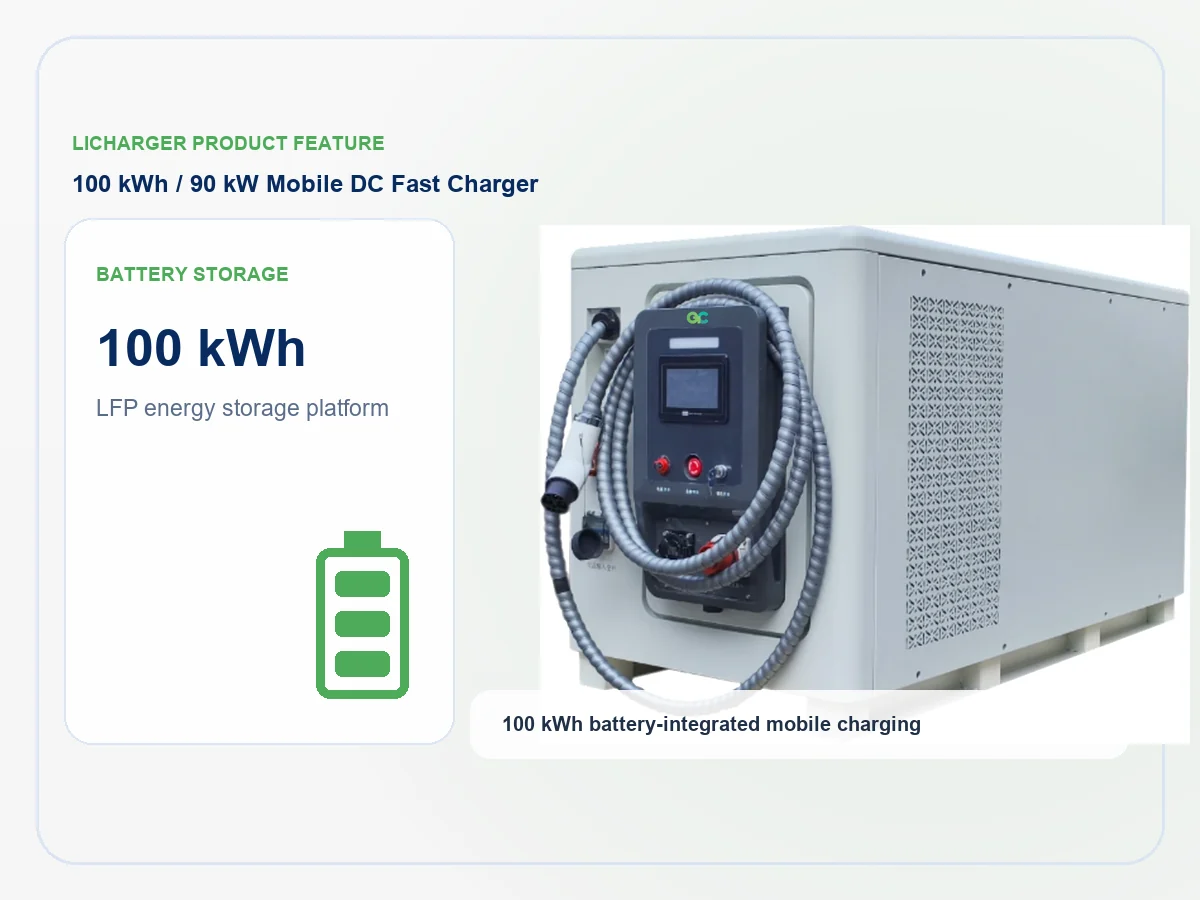

100 kWh lithium iron phosphate (LiFePO4)
90 kW
200–1000 V DC
Single connector; CCS1, CCS2, CHAdeMO, GB/T or NACS
At least 5,000 cycles at 80% DOD
Charge 0°C to 60°C; discharge -30°C to 60°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
IP54
1940 × 1100 × 1200 mm
Approx. 1200 kg
CE, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference
New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
Related Products
Explore More Solutions
75 kWh / 60 kW Mobile DC Fast Charger
Compact battery-powered DC fast charging for roadside assistance, vehicle delivery and temporary fleet support.
141 kWh / 120 kW Mobile DC Fast Charger
One 141 kWh platform with a single-gun 120 kW version or a dual-gun version delivering up to 60 kW per connector.
100 kWh / 90 kW Mobile Charging Robot
Remote-control mobile charging for parking facilities, vehicle compounds and flexible on-demand service.
