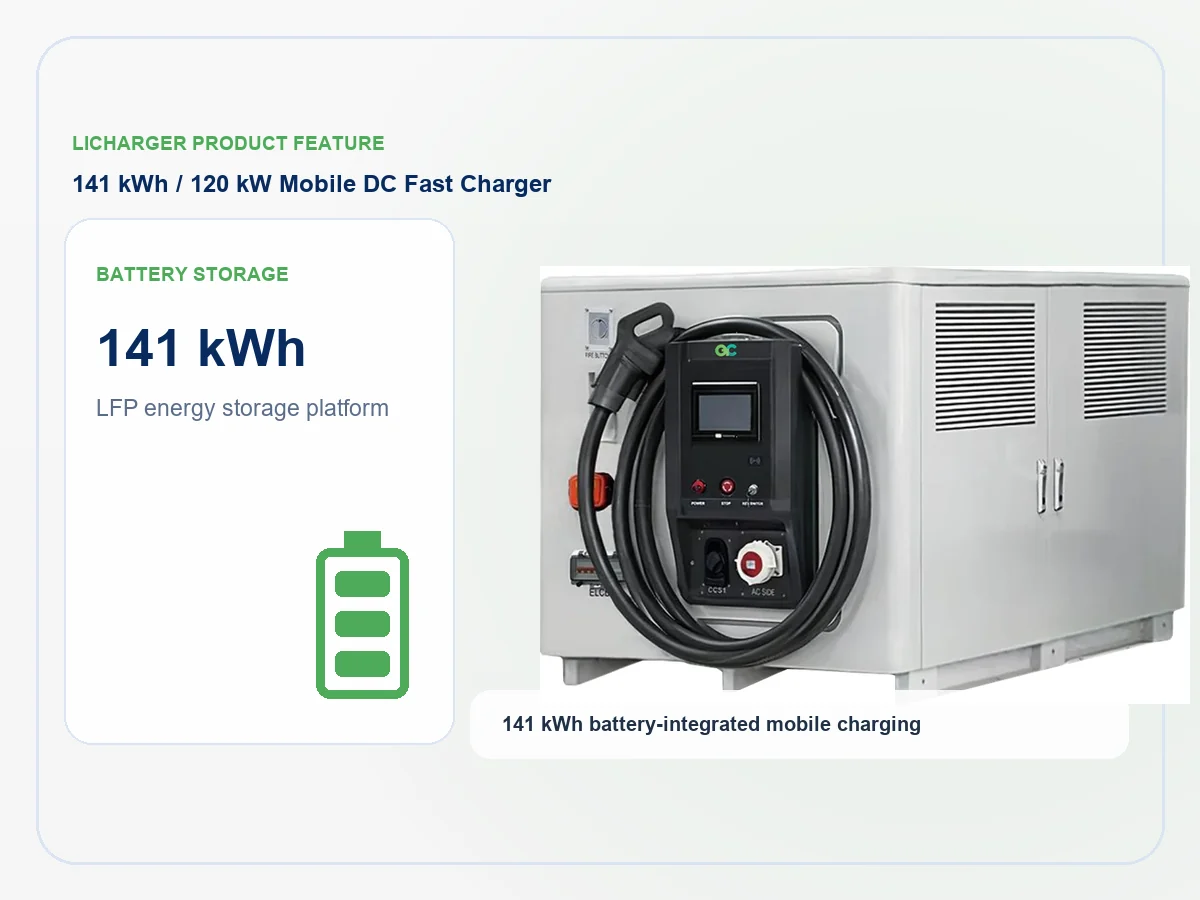

141kWh LFP Battery Storage
Provides increased stored energy for repeated fleet, field-service and temporary charging operations.
Priority Mobile EV Charging Product
141 kWh / 120 kW Mobile DC Fast Charger
One 141 kWh platform with a single-gun 120 kW version or a dual-gun version delivering up to 60 kW per connector.
141 kWhBattery Capacity
120 kW single-gun or dual 60 kW × 2DC Output
One 120 kW connector or two 60 kW connectorsCharging Outputs
IP54Protection
Battery-Powered DC Fast Charging
141 kWh of integrated energy storage with 120 kW single-gun or dual 60 kW × 2 DC output.
Model-Specific Compliance
CE, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1, CCS2, CHAdeMO, GB/T or NACS; final connector and cable configuration is agreed before production.
Overview

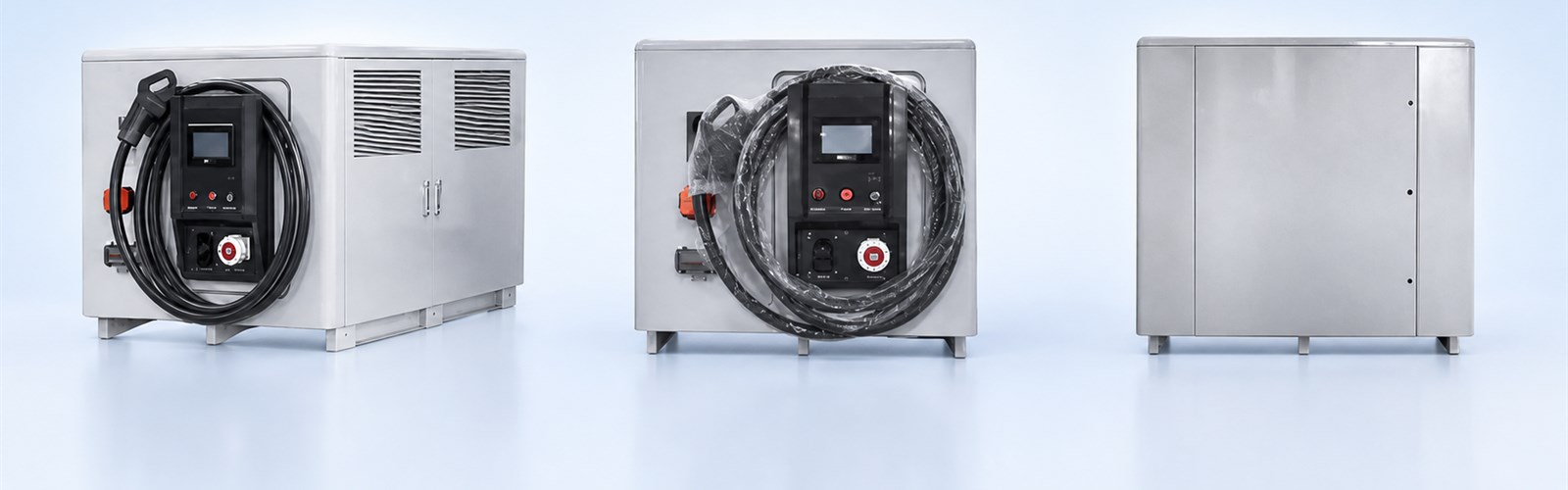

141 kWh / 120 kW Mobile DC Fast Charger
One 141 kWh platform with a single-gun 120 kW version or a dual-gun version delivering up to 60 kW per connector. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LC141-120141 kWh120 kW single-gun or dual 60 kW × 2200–1000 V DCFleet operations, Service vehicles, Construction sites
PRODUCT FEATURES
Key Features of the 141kWh / 120kW Mobile DC Fast Charger

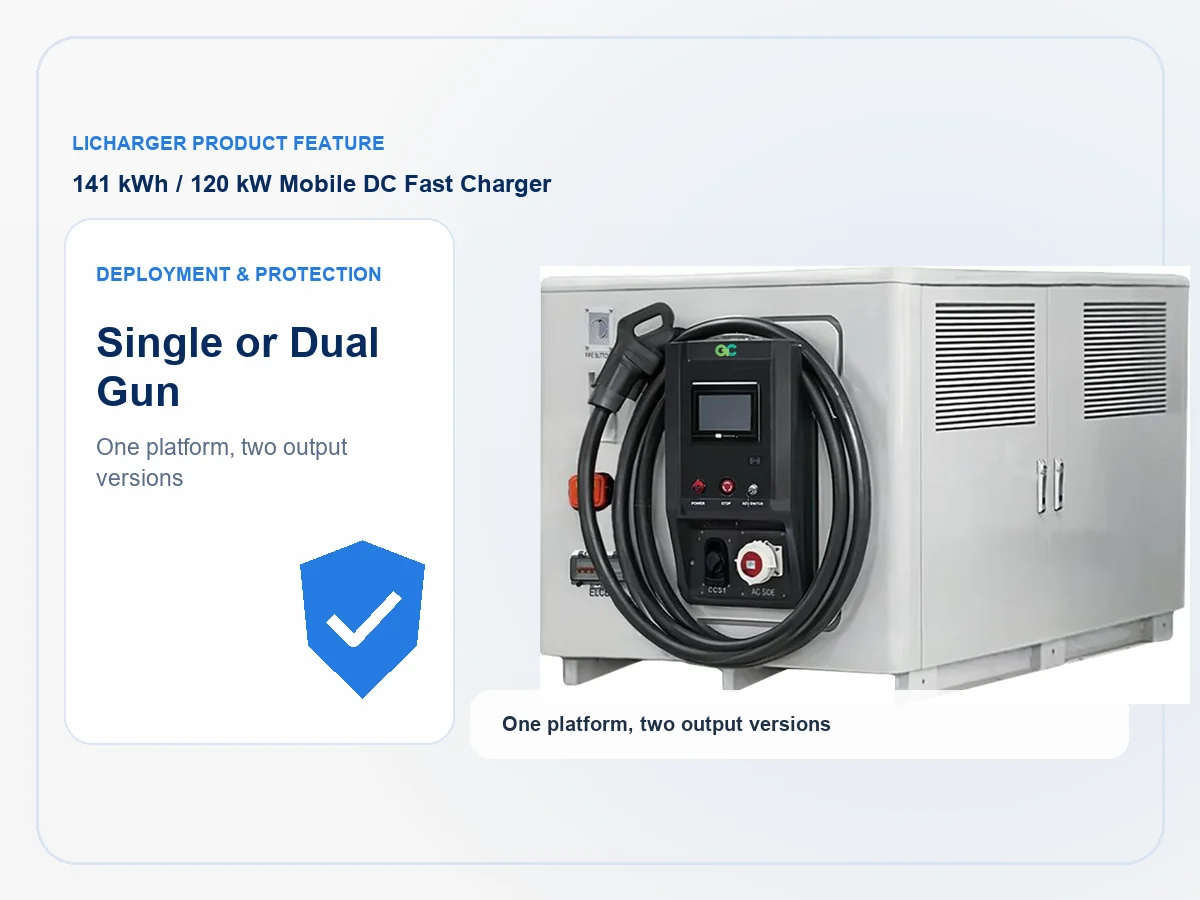

Single- or Dual-Gun Output

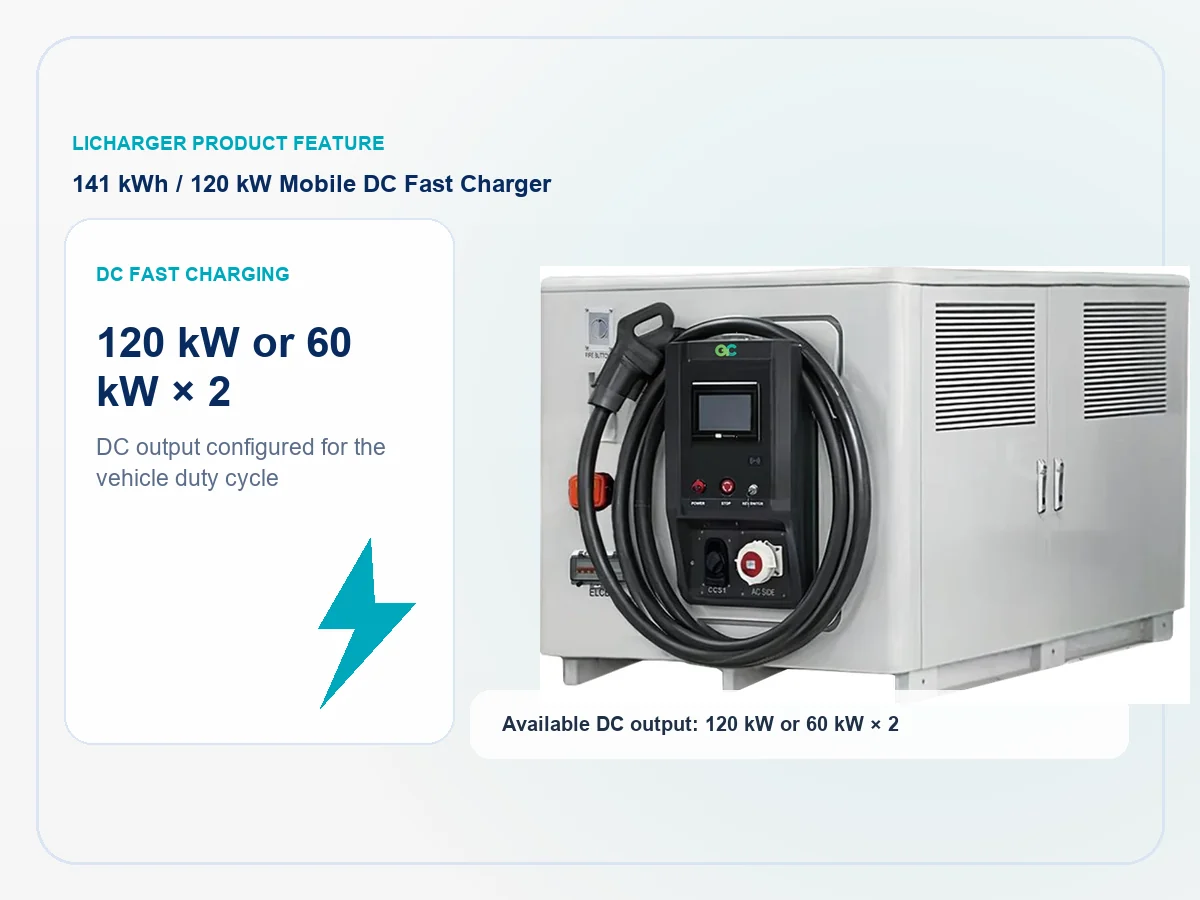

Choose one 120kW output or two 60kW outputs for simultaneous charging.
IP54 Protection Rating
Designed for movable charging operation in indoor and outdoor project environments.

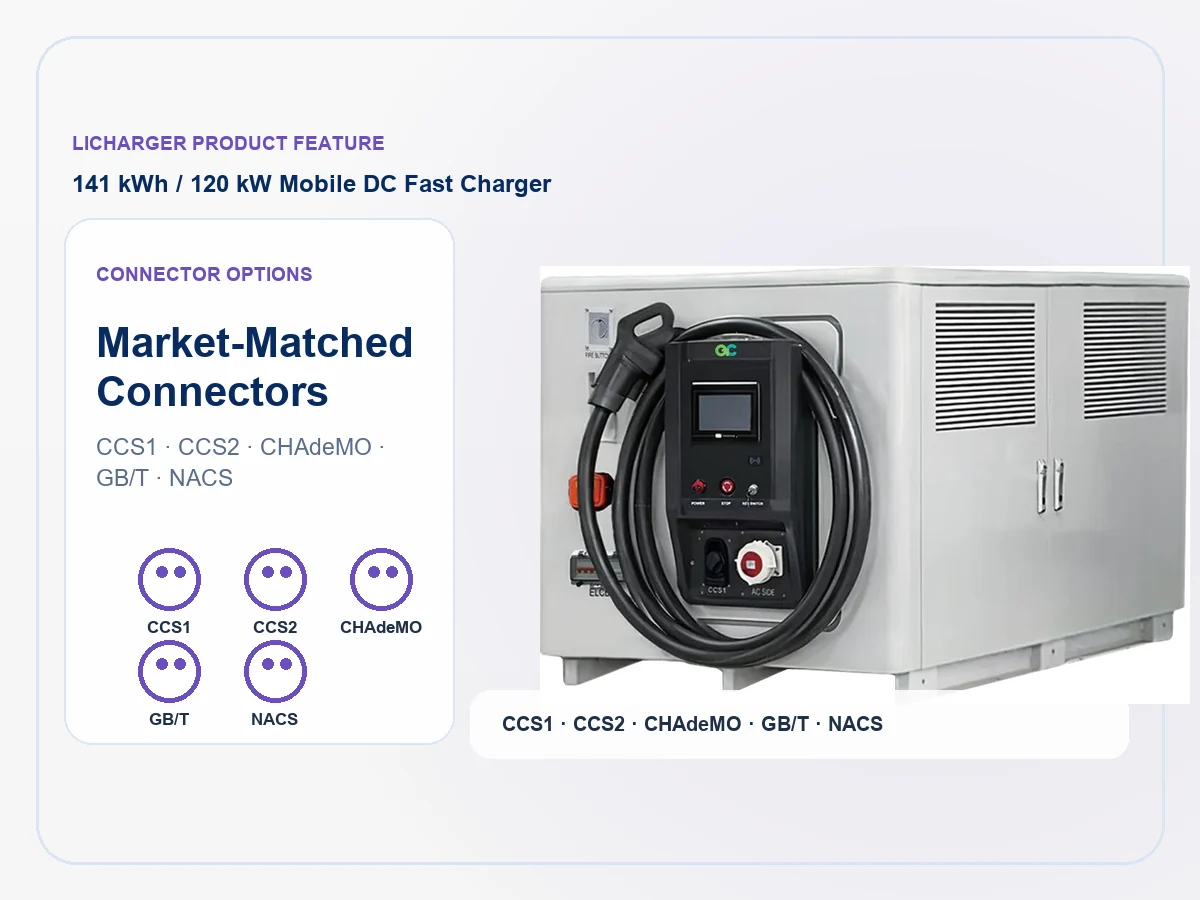

Flexible Connector Options
Available with CCS1, CCS2, NACS, GB/T or CHAdeMO based on market requirements.

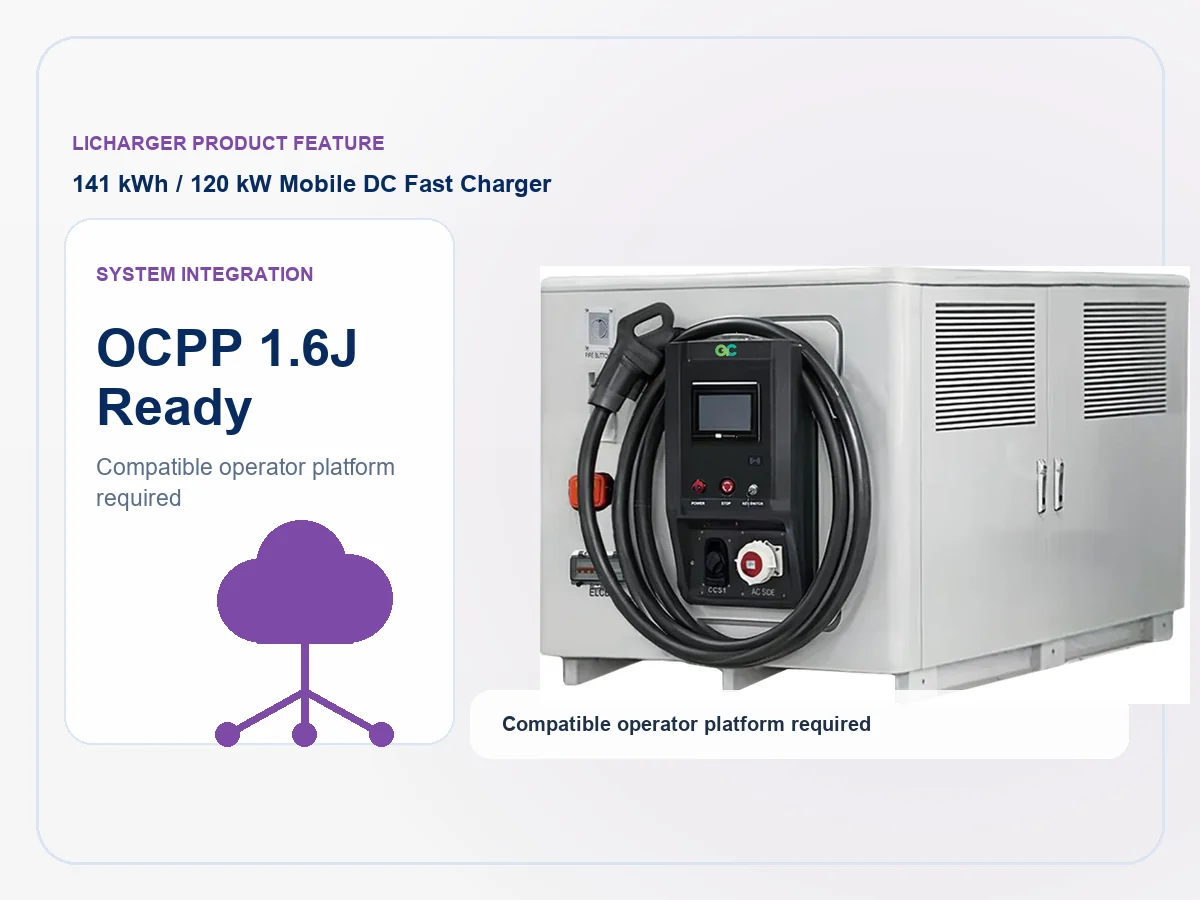

OCPP 1.6J Integration Option
Compatible backend integration, remote monitoring and charging records can be configured when required.

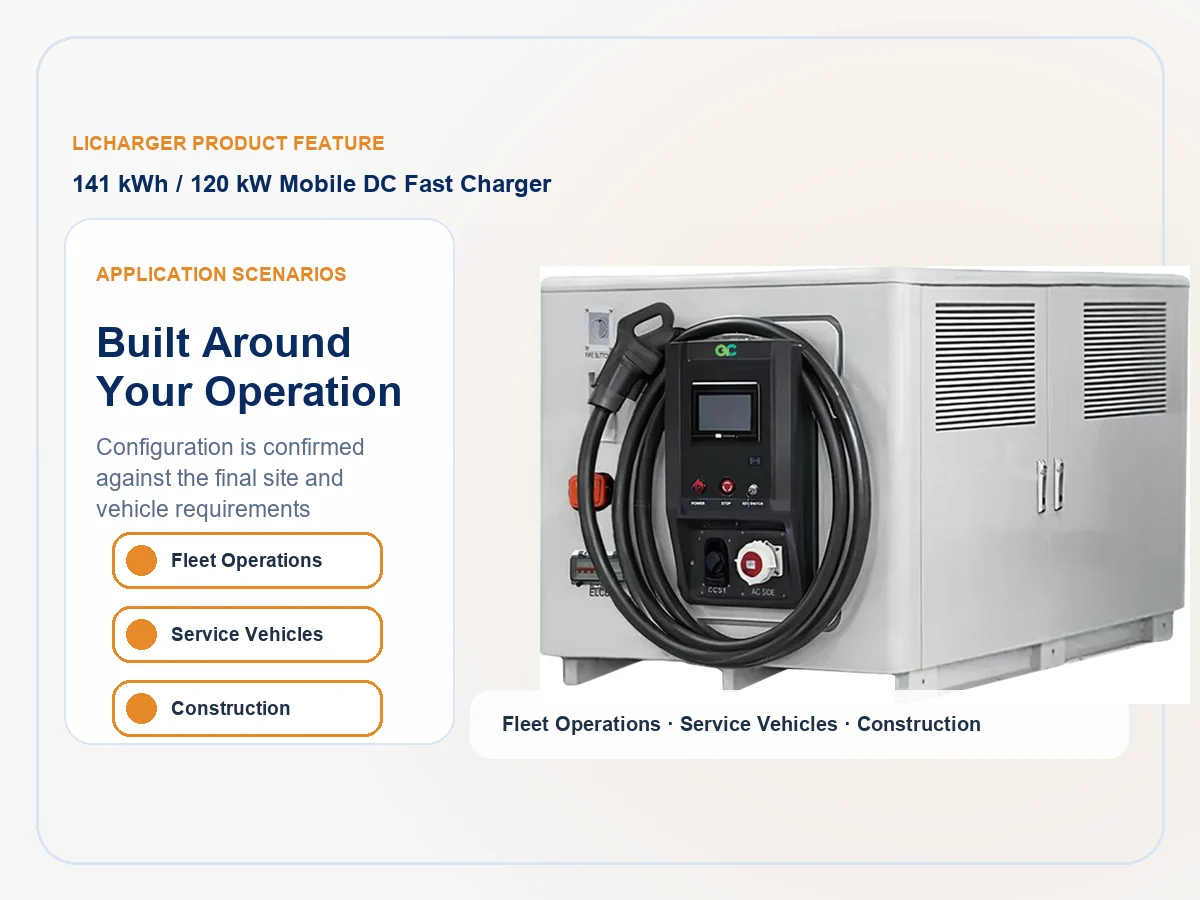

Fleet and Field Applications
Built for roadside assistance, service vehicles, fleet operations and construction sites.
Specifications
Technical Specifications
141 kWh lithium iron phosphate (LiFePO4)
120 kW single-gun or dual 60 kW × 2
200–1000 V DC
One 120 kW connector or two 60 kW connectors; CCS1, CCS2, CHAdeMO, GB/T or NACS
At least 5,000 cycles at 80% DOD
Charge 0°C to 60°C; discharge -30°C to 60°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
IP54
2300 × 1200 × 1000 mm
Approx. 1682 kg
CE, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference

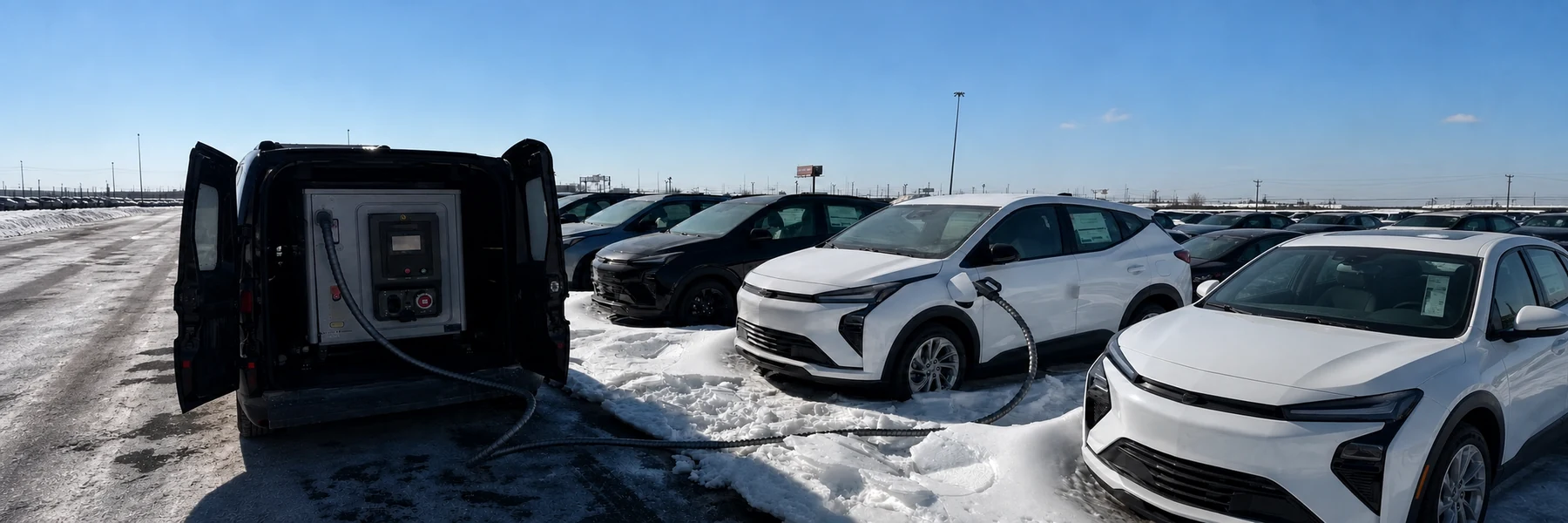

New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
