400kWh LFP Battery Storage
Provides high stored energy for heavy-duty fleets, temporary sites and industrial operations.
High-Capacity Systems
400 kWh / 240–360 kW Dual-Gun Mobile Charging System
One 400 kWh enclosure with two dual-gun power versions for heavy-duty fleets, temporary sites and industrial operations.
400 kWhBattery Capacity
240 kW (120 kW × 2) or 360 kW (180 kW × 2)DC Output
Two connectorsCharging Outputs
Project-specific enclosureProtection
Battery-Powered DC Fast Charging
400 kWh of integrated energy storage with 240 kW (120 kW × 2) or 360 kW (180 kW × 2) DC output.
Model-Specific Compliance
CE, UN38.3, MSDS documentation is available for qualified projects.
Configured for the Destination Market
CCS1, CCS2, CHAdeMO, GB/T or NACS; final connector and cable configuration is agreed before production.
Overview

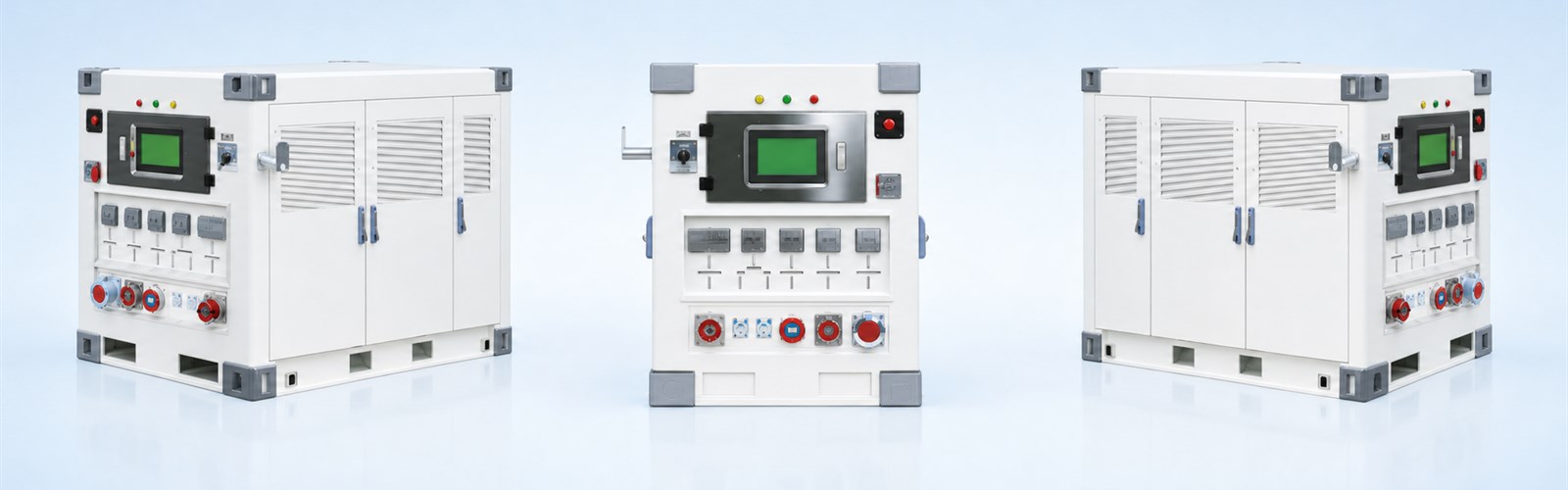

400 kWh / 240–360 kW Dual-Gun Mobile Charging System
One 400 kWh enclosure with two dual-gun power versions for heavy-duty fleets, temporary sites and industrial operations. The system uses lithium iron phosphate battery storage and is configured around the vehicle, charging window, recharge source and destination-market requirements.
ModelBattery CapacityDC Output PowerDC Output VoltageTypical Application
LC400-360400 kWh240 kW (120 kW × 2) or 360 kW (180 kW × 2)200–1000 V DCHeavy-duty fleets, Industrial sites, Construction and mining
PRODUCT FEATURES
Key Features of the 400kWh / 240–360kW Mobile Charging System

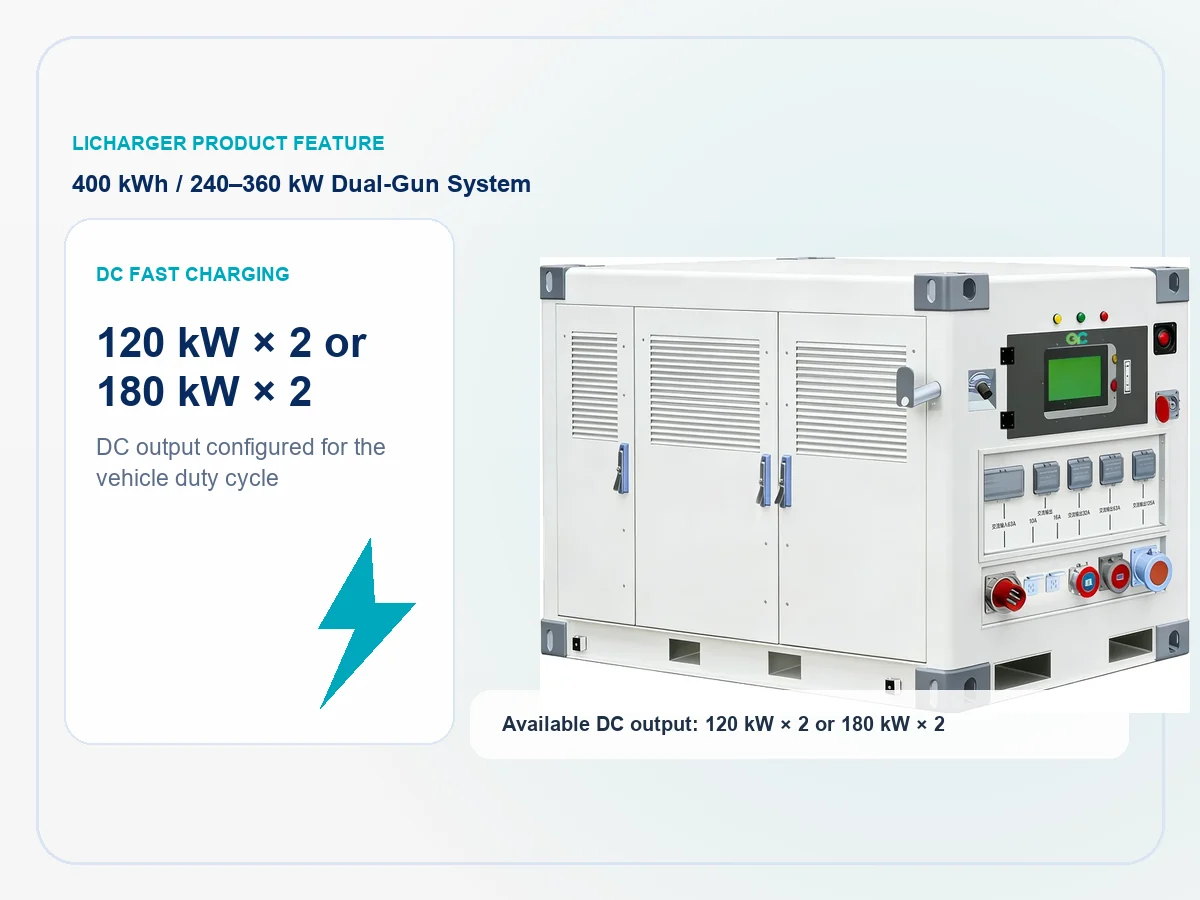

240kW or 360kW Total Output
Choose two 120kW outputs or two 180kW outputs for the required charging duty.

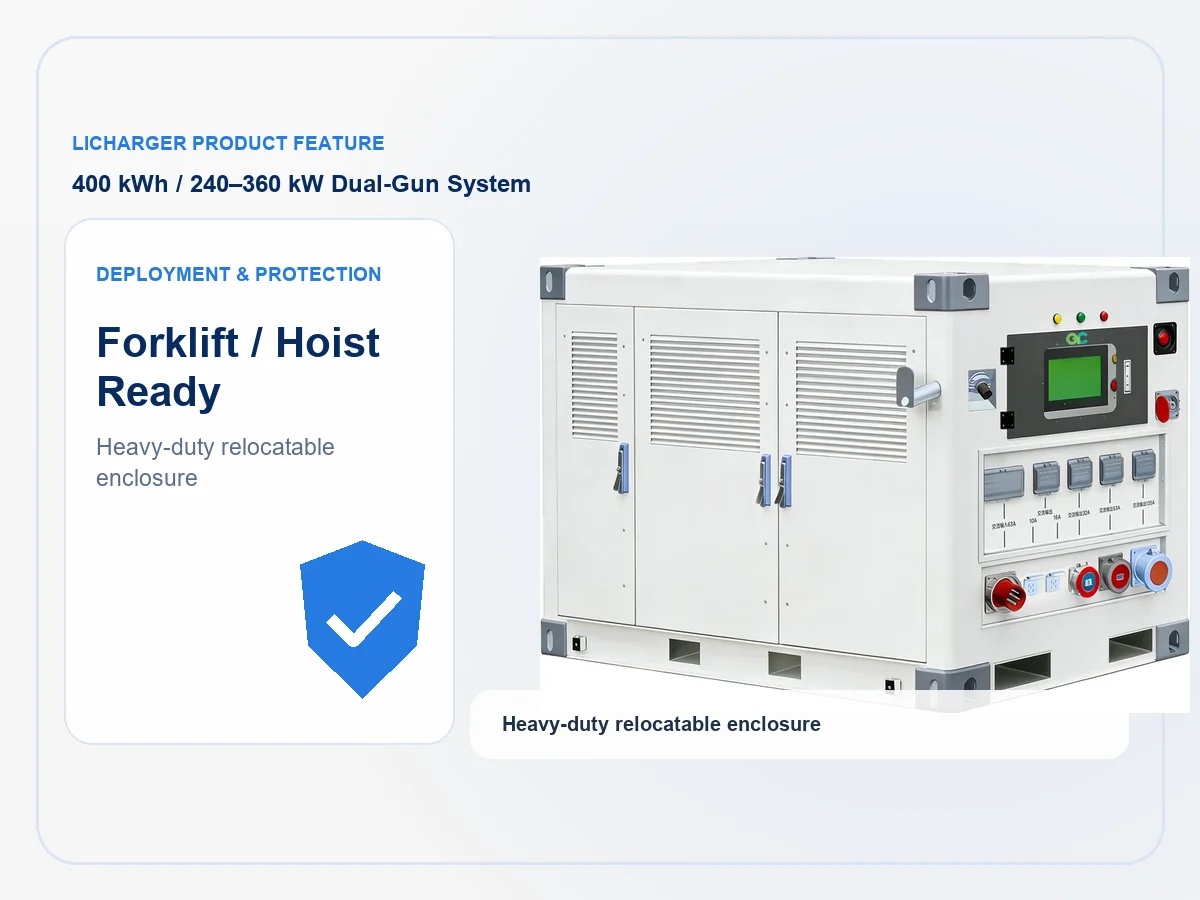

Forklift and Hoisting Access
Designed for forklift transport and corner-casting lifting during controlled site relocation.

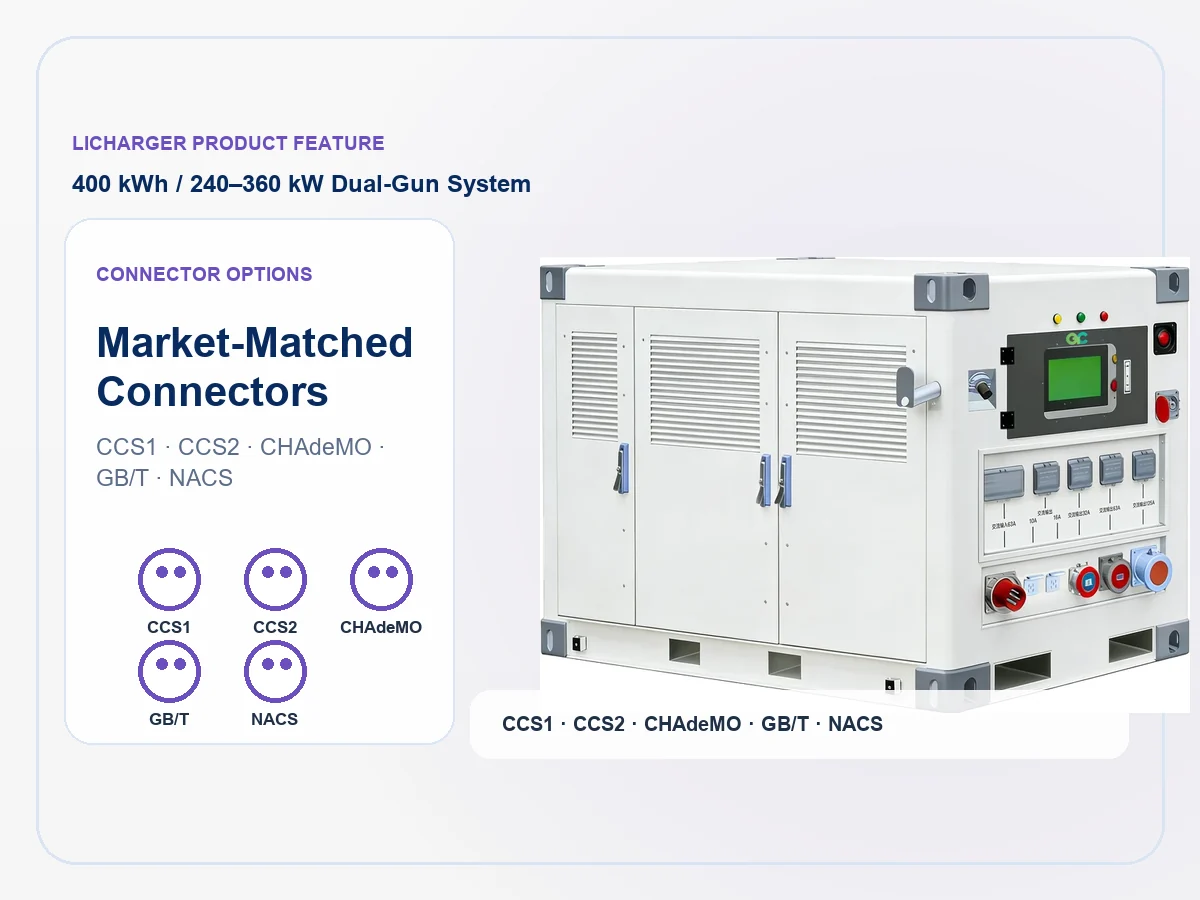

Flexible Connector Options
Available with CCS1, CCS2, NACS, GB/T or CHAdeMO based on market requirements.

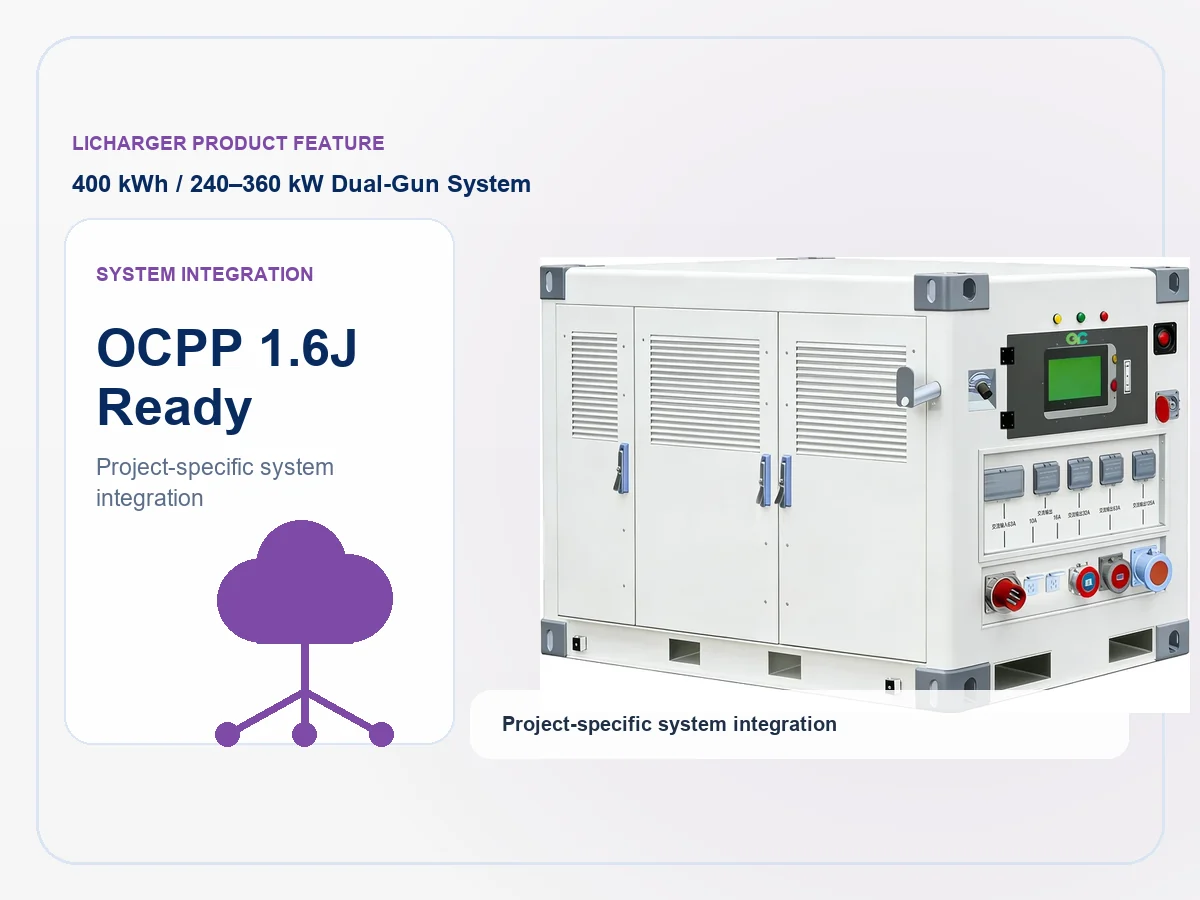

OCPP 1.6J Integration Option
Compatible backend integration, remote monitoring and charging records can be configured when required.

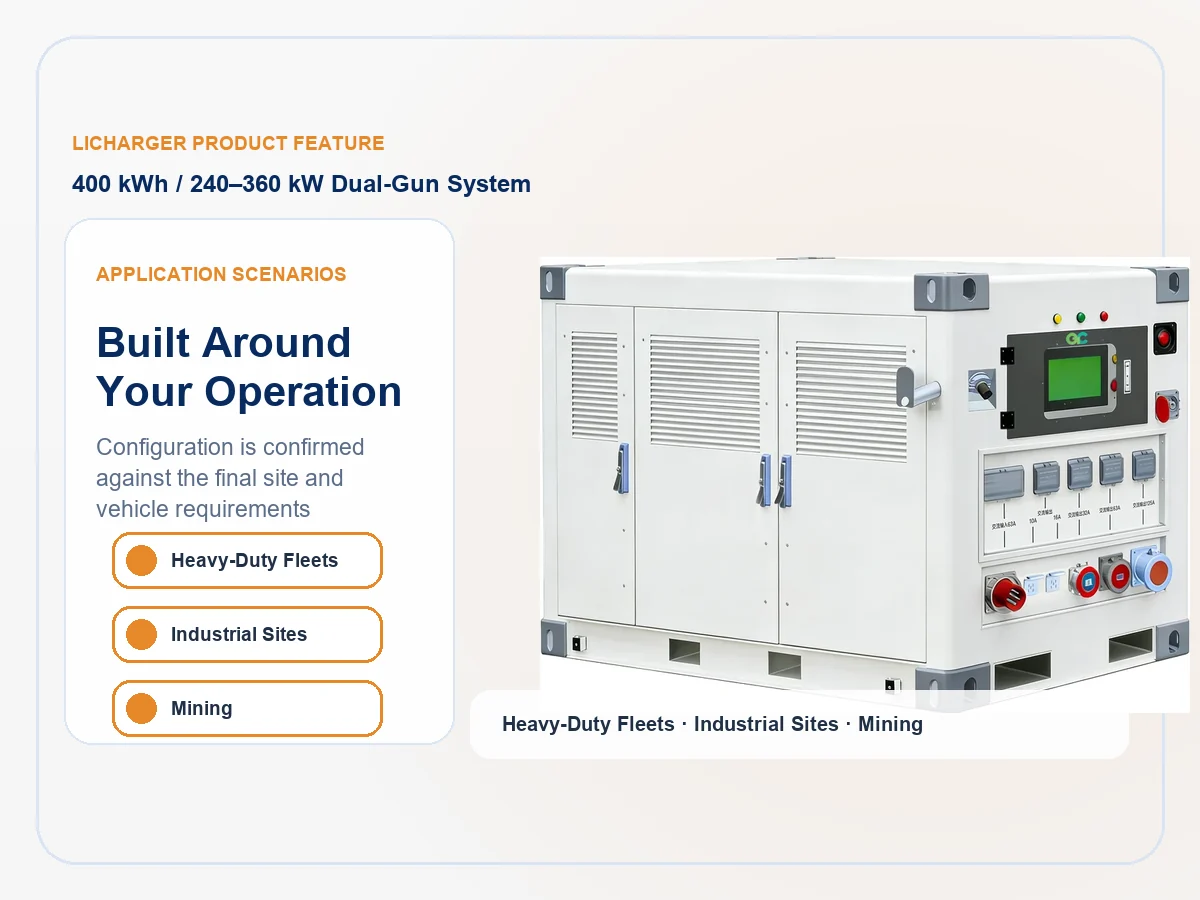

Heavy-Duty Charging Applications
Built for fleet depots, industrial sites, construction, mining and temporary high-power demand.
Specifications
Technical Specifications

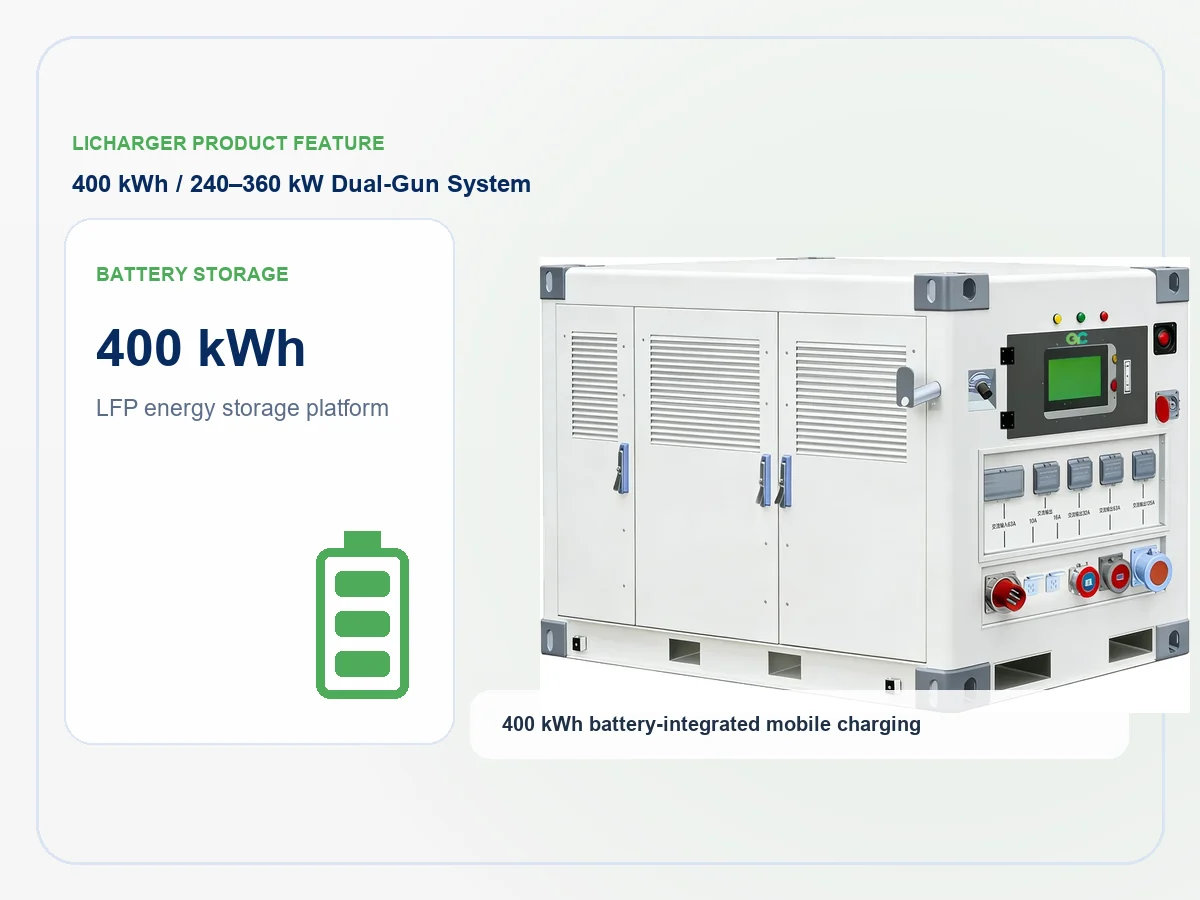

400 kWh lithium iron phosphate (LiFePO4)
240 kW (120 kW × 2) or 360 kW (180 kW × 2)
200–1000 V DC
Two connectors; CCS1, CCS2, CHAdeMO, GB/T or NACS
At least 5,000 cycles at 80% DOD
Charge 0°C to 60°C
OCPP 1.6J hardware-ready; platform, billing, location and remote services require integration with a compatible local operator
Project-specific enclosure
2500 × 1830 × 1550 mm
Up to 4.5 t
CE, UN38.3, MSDS
MOQ 1 unit; standard lead time 45 days; two-year whole-unit warranty
Applications
Built for Every Scenario
Manufacturing & Quality
Built Through a Controlled Manufacturing Network
LiCharger combines its project team with owned and partner manufacturing resources. Configuration, inspection and acceptance requirements are agreed for every order.
Manufacturing Since 2017
Production experience from the shared manufacturing base supports configurable mobile charging systems.
Factory Acceptance Testing
Electrical, charging, communication and safety functions are checked before shipment.
Export Documentation
CE, UN38.3 and MSDS documentation is available across the range; UL applies only to the 209 kWh model.
Deployment Reference
New Jersey Winter Mobile Charging Project
A mobile charging system was supplied for a customer project in New Jersey, USA. Customer identity and performance data remain confidential while the full case brief is being prepared.
- Location: New Jersey, USA
- Application: mobile EV charging
- Detailed configuration available during project consultation
